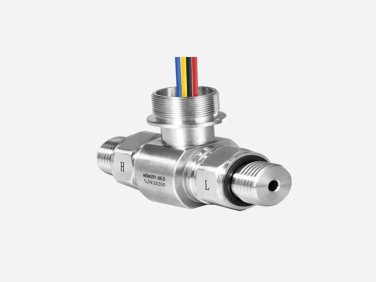

Water Differential Pressure Sensor

  • NG # 04041-HW-microsensor-014

  • MF # MDM291

The MDM291 is a fully welded water differential pressure sensor with a wide pressure range, strong resistance to static pressure, and excellent temperature response characteristics, ideal for industrial process control, pressure checking meters, and pressure calibrators.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MDM291 Water Differential Pressure Sensor is a robust industrial differential pressure sensing element designed for accurate measurement of differential pressure in water and other fluid systems. Built with a fully welded 316L stainless steel structure, it features temperature-compensated performance and high reliability for demanding process control environments. The sensor transmits pressure data through an isolated diaphragm and silicone oil to a high-precision silicon chip, producing a linear output signal suitable for process control, calibration, and industrial pressure monitoring applications.

Specification

  • Model: MDM291 Water Differential Pressure Sensor
  • Measurement Type: Differential pressure
  • Pressure Range: 0 bar ~ 0.35 bar … up to 20 bar
  • Construction: Fully welded design (no O-ring sealing)
  • Material: All 316L stainless steel
  • Static Pressure Resistance: High static pressure up to ~20 MPa
  • Temperature Compensation: Wide range, typically 0℃ to 70℃
  • Isolation: High and low pressure sides both isolated by diaphragms
  • Fluid Compatibility: Suitable for corrosive and conductive fluid media (due to isolated diaphragm design)
  • Output Signal: Linear voltage signal (via piezoresistive sensing die)
  • Pressure Port Interface: Threaded connections (optional thread types available)
  • Applications: Industrial process control, pressure checking meters, pressure calibrators, and similar differential pressure measurement use cases.
