RFQ

High Pressure Range Pressure Sensor

  • NG # 04034-HW-microsensor-007

  • MF # MPM283II

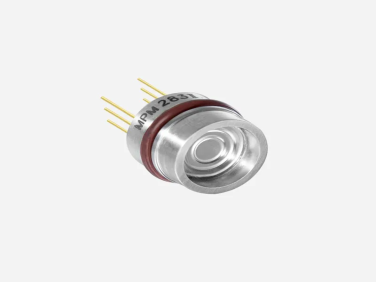

The MPM283II is a compact high‑pressure tank level pressure sensor designed for accurate gas and liquid pressure measurement. It features a durable stainless steel 316L construction, effective temperature compensation, and fast response performance, making it suitable for industrial applications, pressure inspection meters, and pressure calibrators.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM283II pressure sensor is engineered as a high‑pressure OEM sensor with a small form factor (Φ12.6 × 10.5 mm). Built around a diffused pressure sensing die and filled with silicone oil, this sensor transmits fluid pressure through a corrugated stainless steel diaphragm. Through linear correction and temperature compensation, it offers reliable, stable output across a wide pressure range. Installation is simplified using an NBR or EPDM O‑ring for various temperature environments.

Specification

General

  • Compact OEM pressure sensor module, Ø 12.6 mm × 10.5 mm
  • Designed for tank level pressure sensing and general high‑pressure applications
  • Compatible with both gases and liquids

Pressure & Temperature

  • Pressure range: 0 bar to 2.0 bar…1000 bar
  • Temperature compensated: –10 °C to 80 °C

Mechanical & Construction

  • Housing & diaphragm: Stainless Steel 316L
  • Sealing O‑ring: NBR or EPDM
  • Lightweight design: ~8 g (typical, according to similar MPM283 series specs)

Electrical Performance

  • Power supply: ≤ 2.0 mA DC
  • Input impedance: 2 kΩ ~ 8 kΩ
  • Output impedance: 3.5 kΩ ~ 6 kΩ
  • Response time (10 %–90 %): < 1 ms
  • Insulation resistance: 100 MΩ @ 100 V DC
  • Overpressure limit: 2× full scale (min) or 1100 bar

Output & Connectivity

  • Common‑mode voltage output ~50 % of supply (typical) (from extended sources)
  • Electrical connectors: Kovar pins or 100 mm silicone rubber flexible wires

Applications

  • Industrial process control
  • Gas and liquid pressure measurement
  • Pressure inspection meters
  • Pressure calibrators
