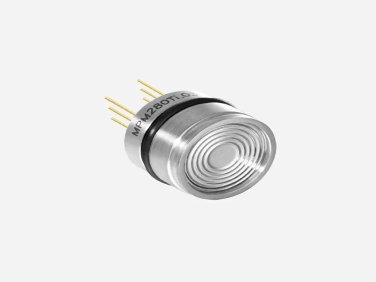

Anti-corrosive Pressure Sensor

  • NG # 04040-HW-microsensor-013

  • MF # MPM280Ti

The MPM280Ti is a compact, high-performance piezoresistive pressure sensor designed specifically for measuring pressure in corrosive liquids and seawater environments. It features an all-titanium construction that provides superior corrosion resistance compared to traditional stainless-steel sensors, making it ideal for use where aggressive media like acids, alkalis, chlorides, and marine fluids are present.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This pressure sensor uses a titanium diaphragm and housing (TC4 material) and is suitable for various applications requiring accurate pressure monitoring in highly corrosive or seawater conditions. It supports gauge, absolute, or sealed gauge pressure output options and offers flexibility in electrical supply configurations.

Specification

General Characteristics

  • Sensor model: MPM280Ti – Anti-corrosive pressure sensor.
  • Measurement type: Piezoresistive pressure sensing.
  • Designed for strongly corrosive media and seawater pressure measurement.

Physical & Mechanical

  • Diameter: Φ19 mm OEM pressure element.
  • Housing & diaphragm material: All titanium (TC4 housing, TA1 diaphragm) for enhanced corrosion resistance.
  • Pressure range: From negative pressure (≈ -1 bar) up to 700 bar (various configurations).

Pressure Types

  • Available in gauge, absolute, and sealed gauge output variants.

Electrical Performance

  • Power supply: ≤ 2.0 mA DC (supports constant current or constant voltage modes).
  • Electrical connection options: φ0.5 mm Kovar pin or 100 mm silicon rubber flexible wires.
  • Output behavior: Common-mode voltage ~50 % of input (typical).
  • Input impedance: 3 kΩ – 8 kΩ (typical).

Functional Features

  • Isolated construction for measuring diverse fluid media without interference.
  • Can measure negative pressure down to ~-1 bar.
  • Suitable for systems such as liquid pressure monitoring and pressure switches in corrosive environments.
