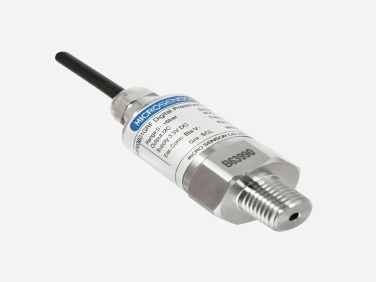

Digital IIC Pressure Transmitter for Volume Corrector

  • NG # 04051-HW-microsensor-025

  • MF # MPM3801GRF

The Digital IIC Pressure Transmitter (Model MPM3801GRF) is a compact, low‑power digital pressure transmitter designed for use in volume corrector applications. It features a stainless steel, oil‑filled sensing element and provides digital outputs via I²C or SPI interfaces, with high accuracy and environmental compliance. Typical uses include gas pressure monitoring, flowmeter integration, and intelligent industrial instrument systems.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM3801GRF is a digital IIC pressure transmitter tailored for volume corrector and precision industrial applications. Built around a robust stainless steel oil‑filled transducer, the device delivers high stability and corrosion resistance in demanding environments. It supports digital communication through standard I²C or SPI protocols, enabling seamless integration with microcontrollers and data acquisition systems. Its low power design makes it suitable for battery‑powered or low‑consumption systems. Secondary temperature compensation enhances measurement accuracy up to ±0.25% of full scale, while compliance with RoHS and REACH ensures environmental safety standards are met. Typical applications include gas pressure monitoring, integration with gas flowmeters, roots and turbine flow measurement systems, and other intelligent pressure instruments across process industries.

Specification

General Characteristics

  • Model: MPM3801GRF digital IIC pressure transmitter for volume corrector applications
  • Output Protocol: Standard I²C or SPI digital interface
  • Power Supply: Low-voltage options including 3.3 V, 5 V, suitable for battery-powered systems
  • Low Power Consumption:
    • Standby power consumption ≤ 5 μA
    • Average working current ≤ 2.5 mA
  • Temperature Compensation: Secondary temperature compensation for improved accuracy
  • Accuracy: Total accuracy up to ±0.25% full scale (FS)
  • Approvals: Compliant with RoHS and REACH environmental standards

Pressure Measurement

  • Pressure Range Options:
    • 0 mbar ~ 70 mbar, 200 mbar, 350 mbar, 700 mbar, 1 bar, 2 bar, 3.5 bar, 5 bar, 7 bar, 10 bar, 16 bar, 20 bar, 35 bar, 70 bar
  • Overpressure Capability: ≤ 2 times full scale (FS)
  • Pressure Types Supported: Gauge, absolute, and sealed gauge

Construction & Stability

  • Sensing Element: Stainless steel oil‑filled MPM3801 transducer
  • Housing Material: All stainless steel for excellent corrosion resistance and long‑term stability
  • Fully temperature compensated for stable performance over operating range
