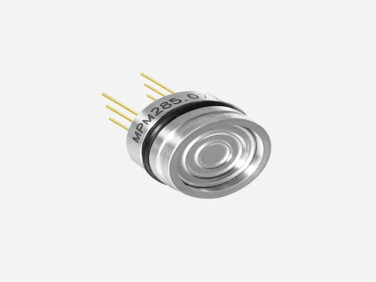

Oil-filled Pressure Sensor

  • NG # 04039-HW-microsensor-012

  • MF # MPM285

The MPM285 oil-filled pressure sensor is a compact, cost-effective industrial pressure sensing device featuring a stable silicon sensing element, stainless steel construction, and options for gauge, sealed gauge, or absolute pressure measurement. Designed for compatibility with various media and confined installation spaces, it’s suitable for applications in process control, liquid and gas pressure measurement, calibrators, and pressure systems.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM285 oil-filled transducer is engineered for reliable pressure measurement in industrial environments. It features a durable stainless steel diaphragm and housing (316L), excellent temperature compensation, and fast response time. Small in size and with versatile installation options, it fits space-limited applications while offering robust performance for liquid and gas pressure sensing.

Specification

General

  • Model: MPM285 Oil-filled Pressure Sensor
  • Compact size: Φ15 × 10.5 mm
  • Media compatibility: Works with fluids/gases compatible with stainless steel and FKM
  • Suitable for spaces with limited installation room

Pressure & Temperature

  • Pressure range options: 0 bar ~ 1 bar… 35 bar
  • Temperature compensation range: 0 ~ 70 °C
  • Available in gauge, sealed gauge, or absolute reference types

Sensor & Construction

  • Sensing element: Silicon die with high stability
  • Diaphragm material: Stainless steel 316L
  • Housing: Stainless steel 316L
  • O-ring: FKM
  • Pin material: Kovar
  • Net weight: ~10 g

Electrical Performance

  • Electrical connection: Φ0.5 mm Kovar pin or 100 mm silicon rubber flexible wires
  • Common mode voltage output: ≈ 50 % of input (typical)
  • Input impedance: 2.5 kΩ ~ 5 kΩ
  • Output impedance: 3.5 kΩ ~ 6 kΩ
  • Response time (10 %–90 %): < 1 ms
  • Insulation resistance: 100 MΩ @ 100 V DC
  • Overpressure limit: 2 × Full Scale (FS)
