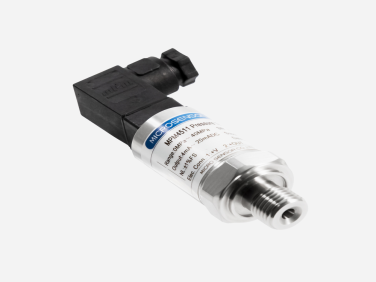

Silicon Microfused Pressure Transmitter

  • NG # 04054-HW-microsensor-028

  • MF # MPM4511

The Micro‑Fused Pressure Transmitter MPM4511 is a silicon micro‑fused industrial pressure transmitter designed for measuring fluid and level pressure in hydraulic and pneumatic systems. It features digital calibration and temperature compensation for enhanced reliability, stability, and performance in demanding environments including high‑temperature steam, corrosive gases, and wastewater.

Manufactured By :
MICROSENSOR
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MPM4511 Silicon Microfused Pressure Transmitter employs advanced micro‑fused silicon strain gauge technology to deliver accurate and dependable pressure measurements across a broad range up to 1000 bar. With robust construction for heavy‑duty and shock‑resistant performance, the transmitter is suitable for general industrial applications, including hydraulic and pneumatic systems. It offers digital calibration and temperature compensation to ensure long‑term stability and is designed for use in challenging media and temperature conditions.

Specification

Model

  • MPM4511 Silicon Microfused Pressure Transmitter

Performance

  • Pressure Range: 0 bar to 16 bar … 1000 bar
  • Accuracy: ≤ ±0.5% FS (@ 25 °C)
  • Total Error Band: ≤ ±1% FS (@ −10 °C to 80 °C)
  • Long‑Term Stability: < 0.25% FS per year
  • Burst Pressure: ≤ 5 × FS (Maximum 2000 bar)

Temperature

  • Compensation Temperature: −10 °C to 80 °C
  • Operating Temperature: −40 °C to 125 °C

Design

  • Pressure Type: Gauge, Sealed Gauge
  • Heavy‑Duty and Shock‑Resistant Construction
  • Compact Structure and High Cost‑effectiveness
  • Digital Calibration and Temperature Compensation

Application

  • Hydraulic systems
  • Pneumatic systems
  • Industrial process pressure and level monitoring
