NG # 04035-HW-microsensor-008
MF # MPM281

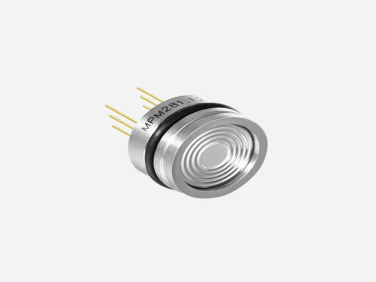

The MPM281 High Stable Pressure Sensor is a compact OEM piezoresistive fluid pressure sensor featuring a rugged 316L stainless steel housing and high‑stability silicon sensing elements. It offers wide pressure range options (from vacuum to high pressure), reliable mV output, and excellent long‑term stability, making it suitable for precision industrial and OEM pressure measurement applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe MPM281 series is designed as a high‑stability fluid pressure sensor for OEM integration. It incorporates a piezoresistive silicon sensing element with patented high‑stability diffused components, providing a strong signal and precise pressure‑to‑electrical conversion. The sensor’s compact Ø19 mm size and robust 316L stainless steel construction make it ideal for use in instruments and systems where space is limited and reliability is critical.
Temperature compensation and zero‑point deviation corrections are performed during manufacturing to ensure accurate readings across a compensated temperature range of –10 °C to +80 °C, with typical long‑term drift kept below ±0.1 % FS per year. MPM281 sensors are versatile for measuring various fluid pressures, including air, water, gas, and oil, and are commonly used in industrial automation, process control, calibration devices, and medical instruments.
• Model: MPM281 High Stable Pressure Sensor
• Sensor Type: Piezoresistive OEM pressure sensor
• Dimensions: Ø19 × 11.5 mm
• Pressure Range:
Gauge & absolute options
From approx. –1 bar…0 bar up to 0.07 bar…1000 bar (various configurations)
• Temperature Compensation: –10 °C to +80 °C
• Temperature Operating Range (varies by model/source): typically wider for operation (e.g., –40 °C to +125 °C)
• Housing Material: Stainless steel 316L
• Filling Options: Silicone or fluorocarbon oil filled
• Signal Output: mV range (OEM signal output)
• Long Term Stability: ±0.1 % FS/year
• Medium Compatibility: Air, water, gas, oil, petroleum (multi medium)
• Applications:
