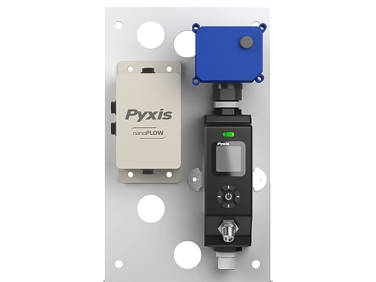

Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module

  • NG # 04355-HW-PYXIS-014

The Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module is a compact, panel-mounted solution designed for precise low-flow measurement and automatic flow regulation in water sampling systems. It integrates an ultrasonic flow meter, control electronics, and a regulating valve to deliver accurate, stable, and programmable flow control for industrial and process applications.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FS-100 NanoFlow Control Module is an all-in-one flow measurement and control system developed for critical cooling water and process sampling applications. It uses ultrasonic transit-time technology to measure flow and automatically regulate it through a built-in control valve.

The system is designed for easy installation as a micro-panel unit, combining a flow meter, control interface, and electric control box. It provides real-time monitoring of flow rate, accumulated volume, and setpoint-based control. With built-in temperature compensation, the system ensures accurate readings even when fluid conditions change.

It supports communication with external systems such as PLCs or DCS via 4–20 mA analog signals and RS-485 Modbus, making it suitable for industrial automation environments where precision and reliability are essential.

Specification

  • Model: FS-100 NanoFlow Control Module
  • Part Number: 21329
  • Measurement Technology: Ultrasonic (transit-time difference)
  • Flow Range: 0 – 3,000 mL/min
  • Resolution: 1 mL/min
  • Accuracy: ±1% to ±2% of reading (varies by source/spec configuration)
  • Supported Fluid: Water / liquids
  • Fluid Temperature Range: 4°C – 49°C (40°F – 120°F)
  • Operating Temperature: 0°C – 50°C (32°F – 122°F)
  • Sample Inlet Pressure: 7.25 – 30 psi (0.05 – 0.2 MPa typical configuration)
  • Display: 1.44" color display (128 × 128 resolution)
  • Output Signals:
    • 4–20 mA (flow rate)
    • 4–20 mA (valve control, internally linked)
    • RS-485 Modbus
  • Power Supply: 24 VDC, approx. 6 W
  • Connection Size: 3/8 inch OD (varies by configuration)
  • Protection Rating: IP65 (panel display), IP67 (valve)
  • Housing: Micro-panel mounted system with integrated control box
  • Functions: Flow measurement, automatic regulation, trend monitoring, setpoint control
