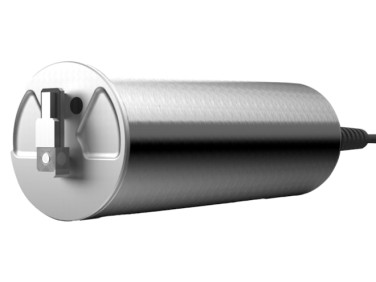

Pyxis LT-63X Series Self-Wiping & Submersible Turbidity Sensors

  • NG # 04343-HW-PYXIS-002

The Pyxis LT-63X Series Self-Wiping Submersible Turbidity Sensors are advanced, submersible water quality sensors designed for accurate turbidity measurement in demanding environments. Featuring self-cleaning wiper technology and dual-wavelength detection, these sensors deliver stable, low-maintenance performance across a wide measurement range up to 4000 NTU.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis LT-63X Series is engineered for continuous and reliable turbidity monitoring in applications such as raw water, surface water, process water, and wastewater systems. Built with a rugged, fully waterproof IP68-rated housing, the sensor operates effectively in harsh and submerged conditions while maintaining high accuracy.


Its dual-wavelength optical technology automatically adapts to varying turbidity levels, ensuring precise readings regardless of changes in water color, flow conditions, or environmental factors. The integrated self-cleaning wiper system prevents fouling from air bubbles and suspended solids, significantly reducing maintenance needs and ensuring long-term stability.


The sensor includes built-in 4–20 mA and RS-485 Modbus outputs, allowing seamless integration with PLCs, controllers, and SCADA systems. With Bluetooth connectivity via an optional adapter and compatibility with the uPyxis app, users can easily perform calibration, diagnostics, and configuration. Designed for minimal maintenance, the LT-63X series can maintain stable readings for extended periods, making it a cost-effective and dependable solution for continuous turbidity monitoring.

Specification

  • Measurement Range:
    • LT-631: 0.00–500 NTU
    • LT-632: 0.00–1000 NTU
    • LT-633: 0.00–4000 NTU
  • Resolution: 0.1 NTU
  • Lower Detection Limit: 0.5 NTU
  • Accuracy: ±2 NTU or ±3% of reading
  • Precision: ±2 NTU or ±2% (<100 NTU), ±10% (>100 NTU)
  • Response Time: T95 < 12 seconds
  • Technology: Dual-wavelength (white light & infrared), scattering method
  • Outputs: Isolated 4–20 mA analog and RS-485 Modbus digital
  • Power Supply: 22–26 VDC, 6W
  • Operating Temperature: 0–50°C (32–122°F)
  • Pressure Rating: Up to 45 psi (≈3.5 bar)
  • Protection Rating: IP68 (fully waterproof and dustproof)
  • Material: 316 stainless steel body with PTFE wiper blade
  • Dimensions: 254 × 57 × 57 mm
  • Weight: Approx. 1.53 kg
  • Installation: Submersible (fixed mount or suspended)
  • Cable Length: 10 m standard with extension options
  • Key Features:
    • Self-cleaning automatic wiper system
    • Built-in transmitter (no external meter required)
    • Bluetooth-enabled calibration via optional adapter
    • Long-term stability with minimal calibration requirements
