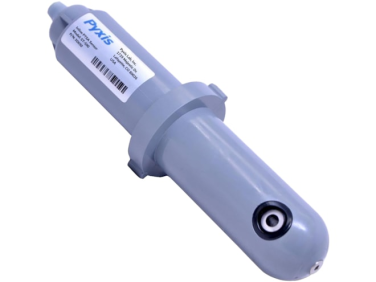

Pyxis ST-500 Inline Fluorometer

  • NG # 04351-HW-PYXIS-010

The Pyxis ST-500 Inline Fluorometer is a high-precision UV-based sensor designed for real-time monitoring of PTSA (fluorescent tracer) concentration in cooling water and RO systems. It provides accurate, stable, and continuous measurement with built-in color and turbidity compensation for reliable water treatment control.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis ST-500 Inline Fluorometer is an advanced smart sensing device used primarily in industrial water treatment applications such as cooling towers and reverse osmosis systems. It measures PTSA concentration using UV fluorescence technology, enabling precise control of chemical dosing in real time.

The sensor is engineered for harsh industrial environments and includes automatic compensation for water color and turbidity, reducing measurement interference and improving long-term stability. It supports Bluetooth connectivity for remote configuration, calibration, and diagnostics via mobile or desktop applications.

With its compact inline design, the ST-500 integrates easily into standard piping systems using a tee assembly. It is widely used for optimizing chemical feed programs, improving operational efficiency, and ensuring consistent water treatment performance.

Specification

  • Measurement Parameter: PTSA (fluorescent tracer)
  • Measurement Range: 0–200 ppb (up to 300 ppb via software)
  • Accuracy: ±1 ppb or ±1% (model dependent)
  • Light Source: UV LED (365 nm excitation / 410 nm emission)
  • Outputs: 4–20 mA analog, RS-485 Modbus
  • Communication: Bluetooth (via adapter/app)
  • Power Supply: 22–26 VDC
  • Power Consumption: ~1 W
  • Installation: 3/4" FNPT inline tee mount (ST-001 tee assembly)
  • Pressure Rating: Up to 100 psi (standard models)
  • Temperature Range: 4°C to 49°C
  • Material: CPVC (SS version also available)
  • Protection Rating: IP67 (dust and water resistant)
  • Cable Length: ~5 ft with connectors
  • Calibration: Two-point calibration using standard solution
  • Features:
    • Automatic color and turbidity compensation
    • Real-time monitoring capability
    • Bluetooth-enabled diagnostics and calibration
    • Stable long-term performance in industrial conditions
