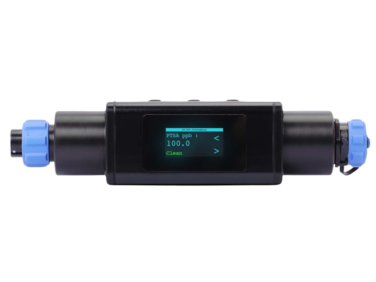

Pyxis MA-WB Bluetooth Adapter

  • NG # 04360-HW-PYXIS-019

The Pyxis MA-WB Bluetooth Adapter is a 7-pin inline communication accessory that enables wireless Bluetooth 5.0 connectivity for Pyxis inline sensors. It allows users to access, configure, calibrate, and monitor sensor data through the uPyxis mobile app with easy plug-and-play installation.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis MA-WB Bluetooth Adapter is designed to simplify interaction with Pyxis Lab inline sensors by enabling wireless communication via Bluetooth 5.0. Installed directly between the sensor and controller, it provides real-time access to sensor data, configuration tools, and calibration functions through the uPyxis application.

The adapter is part of Pyxis’s MA-Series “quick-adapter” lineup and supports seamless integration without requiring tools for installation. It draws 24VDC power from the connected controller and passes it through to the sensor while also enabling communication via 4–20 mA and RS-485 Modbus signals. In addition to wireless connectivity, it includes a local display and onboard diagnostic, calibration, and data logging capabilities for improved field usability.

Specification

  • Product Type: Inline Bluetooth adapter
  • Model: MA-WB
  • Wireless Technology: Bluetooth 5.0
  • Pin Format: 7-pin
  • Power Supply: 24 VDC (±2) @ 10 mA (from controller)
  • Signal Output: RS-485 Modbus (via Bluetooth), 4–20 mA pass-through
  • Enclosure Material: ABS
  • Enclosure Rating: IP54
  • Operating Temperature: 40–122°F (4–50°C)
  • Storage Temperature: 20–140°F (-7–60°C)
  • Interface: Local display with navigation buttons
  • Functions: Sensor configuration, calibration, diagnostics, data logging
  • Compatibility: Pyxis 7-pin inline sensors
  • Installation: Tool-free inline quick adapter design
  • Weight: Approx. 45 g
  • Certifications: CE / RoHS
