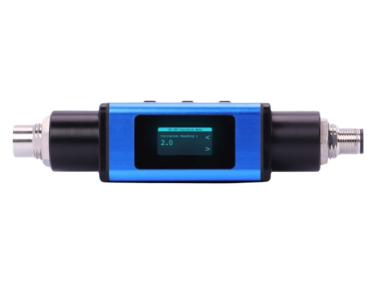

Pyxis MA-CR 8-Pin Inline Bluetooth Adapter

  • NG # 04361-HW-PYXIS-020

The Pyxis MA-CR 8-Pin Inline Bluetooth Adapter is a smart communication module that enables wireless Bluetooth connectivity for Pyxis 8-pin inline sensors. It allows users to monitor, configure, calibrate, and diagnose sensors remotely through the uPyxis mobile app, making field operations faster and more efficient.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis MA-CR is designed to simplify sensor management by adding Bluetooth 5.0 capability to compatible Pyxis 8-pin inline sensors. Installed directly inline without tools, it draws power from the connected controller and seamlessly passes power and signals to the sensor.

Once connected, the adapter enables wireless access to sensor data via the uPyxis app, allowing users to perform calibration, configuration, and diagnostics without physically interacting with the sensor. It also supports live data display, data logging, and local diagnostics through its built-in interface.

This device is widely used in industrial and water treatment applications where remote monitoring and quick maintenance of sensors are required.

Specification

  • Model: MA-CR
  • Type: 8-Pin Inline Bluetooth Adapter
  • Wireless Technology: Bluetooth 5.0
  • Power Input: 24 VDC (±2 V), ~10 mA (from controller)
  • Communication Output: RS-485 (via Bluetooth interface)
  • Signal Pass-through: 4–20 mA and RS-485 support
  • Enclosure Material: ABS
  • Protection Rating: IP54
  • Operating Temperature: 40–122 °F (4–50 °C)
  • Storage Temperature: -7 to 60 °C (approx.)
  • Dimensions: 90 × 60 × 40 mm (approx.)
  • Weight: ~45 g
  • Compatibility: Pyxis 8-pin inline sensors
  • Functions: Calibration, diagnostics, configuration, live data logging
  • Interface: uPyxis mobile application
