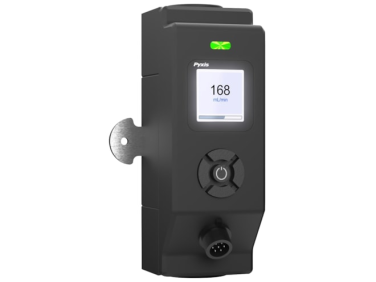

Pyxis FS-100 Ultrasonic Micro Flow Meter

  • NG # 04348-HW-PYXIS-007

The Pyxis FS-100 is a high-precision ultrasonic micro flow meter designed for accurate low-flow liquid measurement. Using transit-time ultrasonic technology, it delivers reliable flow monitoring with built-in temperature compensation, digital communication, and analog outputs, making it ideal for water treatment, industrial processes, and OEM integration.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis FS-100 ultrasonic micro flow meter is an advanced inline measurement device engineered for precise monitoring of low liquid flow rates. It operates using transit-time ultrasonic technology, where the difference in signal travel time upstream and downstream is used to calculate flow velocity with high accuracy.

Designed primarily for water-based applications, the FS-100 features a durable CPVC/UPVC liquid end and supports a wide range of industrial environments. Its integrated temperature compensation ensures consistent accuracy by minimizing the effects of fluid temperature variations. The meter provides real-time measurement, accumulated flow tracking, and programmable control based on user-defined setpoints.

With both 4–20 mA analog outputs and RS-485 Modbus digital communication, the device can easily connect to PLCs, DCS systems, and other controllers. The built-in color display offers clear visualization of flow data, while its compact design and low power consumption make it suitable for OEM systems and compact installations.

Specification

  • Measurement Range: 0 to 3,000 mL/min
  • Resolution: 1 mL/min
  • Accuracy: ±1% of measured value
  • Measurement Principle: Transit-time ultrasonic

Fluid & Mechanical

  • Supported Fluid: Water / aqueous liquids
  • Fluid Temperature: 40 to 120°F (4 to 49°C)
  • Inlet Pressure: 7.25 to 100 psi
  • Flow Path Diameter: 5 mm
  • Connections: 1/4" OD inlet, 1/2" FNPT outlet

Electrical & Output

  • Power Supply: 24 VDC, approx. 1W
  • Analog Outputs:
    • 4–20 mA (flow rate)
    • 4–20 mA (valve control)
  • Digital Output: RS-485 Modbus

Display & Interface

  • Display: 1.44-inch color screen (128 × 128 resolution)
  • Functions: Instantaneous flow, accumulated flow, setpoint control

Environmental

  • Operating Temperature: 32 to 122°F (0 to 50°C)
  • Humidity: 5 to 95%
  • Protection Rating: IP65
  • Compliance: CE, RoHS
