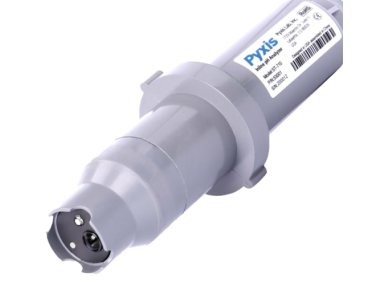

Pyxis ST-71X Series Industrial pH & ORP Sensors

  • NG # 04344-HW-PYXIS-003

The Pyxis ST-71X Series Industrial pH & ORP Sensors are advanced inline water quality sensors designed for accurate measurement of pH and oxidation-reduction potential (ORP) in industrial and process water applications. Featuring an embedded transmitter with 4–20mA and RS-485 Modbus outputs, these sensors offer reliable, low-maintenance performance even in challenging environments such as wastewater, cooling water, and high-turbidity systems.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis ST-71X Series Industrial pH & ORP Sensors are engineered to simplify installation, calibration, and ongoing operation in demanding industrial water environments. These sensors integrate a built-in transmitter, enabling direct connection to PLCs, controllers, and distributed control systems without the need for additional pre-amplifiers. They support both 4–20mA analog output and RS-485 Modbus communication, with optional temperature output when using Modbus, enhancing system integration flexibility.

Designed for durability and long-term use, the ST-71X series incorporates a flat pH sensing surface and an oversized platinum ORP electrode, improving resistance to fouling, contamination, and highly turbid water conditions. The enlarged salt bridge and high-capacity junction extend sensor life while minimizing maintenance requirements. Unlike conventional sensors, these units do not require electrolyte refilling or electrode replacement, allowing for a full lifecycle “install-and-use” approach.

These sensors are ideal for applications such as industrial process water, wastewater treatment, cooling systems, reverse osmosis, and surface water monitoring. Their robust construction and flexible installation options, including inline and submersion setups, make them suitable for a wide range of water quality monitoring scenarios.

Specification

  • pH Measurement Range: 0 to 14 pH with ±0.01 pH accuracy (ATC)
  • ORP Measurement Range: ±1,500 mV with ±1.0 mV precision
  • Response Time: 95% within 5 seconds
  • Output Signals: 4–20mA (isolated) and RS-485 Modbus
  • Power Supply: 12–36 V DC, approximately 1 W
  • Operating Temperature: 4°C to 49°C (40°F to 120°F)
  • Storage Temperature: -20°C to 60°C
  • Operating Pressure: Up to 0.7 MPa (100 psi)
  • Connector: IP67 waterproof cable (1.5 m length)
  • Materials: CPVC standard, optional stainless steel
  • Installation: ¾" NPT tee (inline) or submersion adapter option
  • Dimensions: Approx. 172.7 mm length × 36.6 mm diameter
  • Weight: Approx. 170 g
  • Service Life: Typically over 2 years
  • Protection Rating: IP67
