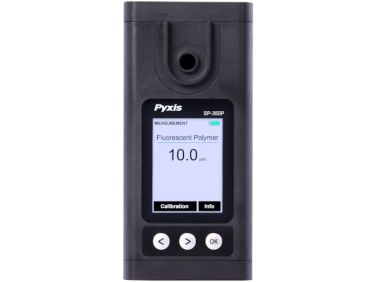

Pyxis SP-350P and SP-380P Fluorometers

  • NG # 04350-HW-PYXIS-009

The Pyxis SP-350P and SP-380P are handheld fluorometers designed for direct measurement of fluorescent polymers in cooling and process water systems. These instruments feature built-in sample cells, eliminating the need for cuvettes, and automatically compensate for color and turbidity interference to ensure accurate and reliable readings.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis SP-350P and SP-380P fluorometers are compact, user-friendly devices engineered for monitoring fluorescent tracer chemicals in water treatment applications. Both models utilize advanced optical technology to deliver precise measurements while compensating for common interferences such as color and turbidity found in real-world water samples.

The SP-350P operates as a single-channel fluorometer, specifically measuring fluorescent polymer concentrations within a range of 0–20 ppm. In contrast, the SP-380P is a dual-channel device capable of measuring both fluorescent polymer (0–20 ppm) and PTSA (0–300 ppb), making it more versatile for applications requiring multiple parameter monitoring.

Both instruments are designed with a built-in sample cell, allowing direct sample insertion without the need for additional accessories such as cuvettes. Their rugged, waterproof construction and intuitive interface make them suitable for field use, while features like the LOCK-IN function and large TFT display enhance measurement stability and readability.

Specification

  • Measurement Range
    • SP-350P: 0.1 – 20 ppm Fluorescent Polymer
    • SP-380P: 0 – 20 ppm Polymer; 0 – 300 ppb PTSA
  • Excitation Wavelength
    • SP-350P: 410 nm LED
    • SP-380P: 365 nm & 410 nm LED
  • Emission Wavelength
    • SP-350P: 470 nm
    • SP-380P: 410 nm & 450 nm
  • Wavelength Accuracy
    • ±1 nm
  • Display
    • 320 × 240 TFT-LCD screen, sunlight readable
  • Measurement Capability
    • Automatic compensation for color and turbidity interference
  • Design Features
    • Built-in sample cell (no cuvette required)
    • LOCK-IN measurement stabilization feature
    • Waterproof and drop-resistant housing
  • Power Supply
    • 4 × AA alkaline batteries
  • Battery Life
    • Up to 3200 readings
  • Dimensions
    • Approx. 170 × 80 × 45 mm
  • Weight
    • Approx. 400 g (without battery)
  • Operating Conditions
    • Temperature: 4 – 41°C
    • Humidity: Up to 85% RH
  • Protection Rating
    • IP67 rated enclosure
  • Additional Features
    • Bluetooth wireless calibration capability
    • Sample cell cleanliness diagnostics
    • No sample lid design to reduce ambient light interference
