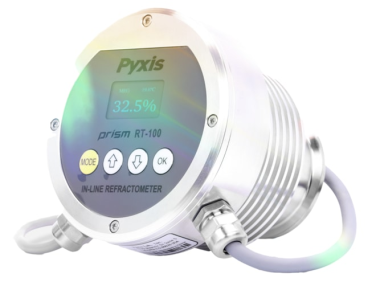

Pyxis RT-100 PRISM Inline Refractometer

  • NG # 04346-HW-PYXIS-005

The Pyxis RT-100 PRISM is a high-precision inline digital refractometer designed to measure liquid refractive index and convert it into accurate concentration values such as Brix, glycol, and other process fluids. It features real-time monitoring, integrated outputs, and durable stainless-steel construction for industrial applications.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis RT-100 PRISM Inline Refractometer is an advanced process monitoring instrument engineered for continuous measurement of liquid concentration in industrial systems. It operates by measuring the refractive index of a sample and automatically converting it into meaningful concentration values such as sugar content (Brix), mono-ethylene glycol (MEG), mono-propylene glycol (MPG), and other fluid parameters.

This device is designed as a stand-alone unit, offering real-time data display and built-in data logging capabilities, making it suitable for a wide range of water treatment and process applications. With integrated 4–20 mA and RS-485 Modbus communication, it easily connects to PLCs, DCS systems, or other controllers for seamless automation and monitoring.

Constructed with robust 316L stainless steel and equipped with a sapphire prism, the RT-100 is built to withstand harsh industrial environments. It also features temperature compensation algorithms to ensure high accuracy across varying operating conditions. Its user-friendly interface, along with optional Bluetooth connectivity and easy installation design, makes it a reliable and efficient solution for continuous process control.

Specification

  • Measurement Parameters:
    • Refractive Index, Brix, MEG, MPG, ALV
  • Measurement Range:
    • Refractive Index: 1.30000 – 1.5100
    • Brix: 0.00 – 85.00%
    • Mono-Ethylene Glycol: 0.00 – 100.00%
    • Mono-Propylene Glycol: 0.00 – 100.00%
    • Advanced Low Viscosity Fluid: 0.00 – 100.00%
  • Accuracy:
    • Refractive Index: ±0.0002
    • Brix & Glycol: ±0.2%
  • Resolution:
    • Refractive Index: 0.0001
    • Brix & Glycol: 0.1%
  • Temperature Range:
    • Sample Temperature: -20 to 70°C
    • Operating Temperature: -10 to 40°C
  • Max Pressure / Flow:
    • ≤142 psi (0.98 MPa)
    • <13.5 GPM
  • Outputs:
    • 4–20 mA (dual output)
    • RS-485 Modbus RTU
  • Power Supply:
    • 24 VDC (approx. 1.5W)
  • Construction Material:
    • 316L Stainless Steel, Sapphire prism
  • Protection Rating:
    • IP67
  • Dimensions & Weight:
    • Size: 110 × 116 mm
    • Weight: 2.8 kg
  • Additional Features:
    • Built-in temperature compensation
    • Local display with push-button interface
    • Data logging capability (up to 56 days)
    • Optional Bluetooth connectivity
    • Easy installation with tri-clamp flow cell
