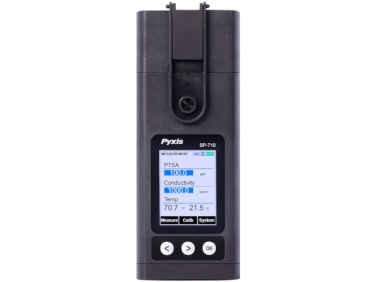

Pyxis SP-710 and SP-710B Water Multimeter

  • NG # 04345-HW-PYXIS-004

The Pyxis SP-710 and SP-710B Water Multimeter is a handheld, multi-parameter water analysis device designed to measure up to six critical water quality parameters simultaneously. Featuring Bluetooth connectivity, advanced optical and electrochemical sensing, and a rugged waterproof design, it delivers fast, accurate results for industrial water treatment applications.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis SP-710 and SP-710B Water Multimeter are advanced handheld instruments engineered for efficient and precise water quality monitoring. These devices combine multiple measurement capabilities into a single compact unit, eliminating the need for separate meters. Depending on the model, they can measure key parameters such as pH, conductivity, PTSA, ORP, temperature, and either free chlorine (SP-710) or fluorescein (SP-710B), making them ideal for cooling tower and boiler water applications.

Built with proprietary technology, the multimeter integrates electrochemical and optical measurement methods in a cuvette-less platform, ensuring accurate readings even in samples affected by color and turbidity. The device provides results in under a minute and supports one-handed operation for convenience in field conditions.

Additionally, the instrument features Bluetooth connectivity, allowing users to store, transfer, and analyze data via mobile devices or computers. Its rugged IP67-rated waterproof construction, long battery life, and intelligent sensor diagnostics make it a reliable solution for demanding industrial environments.

Specification

  • Measurement Parameters: Up to 6 simultaneous parameters
  • Models:
    • SP-710: pH, Conductivity, PTSA, ORP, Temperature, Free & Total Chlorine
    • SP-710B: pH, Conductivity, PTSA, ORP, Temperature, Fluorescein
  • Display: Color LCD, sunlight-readable
  • Protection Rating: IP67 (dustproof and waterproof)
  • Connectivity: Bluetooth for data transfer and mobile monitoring
  • Data Storage: Up to 8GB historical data logging
  • Battery: 4 × AA alkaline batteries
  • Battery Life: Up to 10,000 readings

Measurement Ranges

  • pH: 0.00 – 14.00 (±0.01 accuracy)
  • ORP: ±1500 mV (±1 mV)
  • Conductivity: 1 – 15,000 µS/cm
  • PTSA: 0 – 300 ppb
  • Temperature: 0 – 70°C (32 – 160°F)
  • Free & Total Chlorine (SP-710): 0.02 – 2.20 ppm
  • Fluorescein (SP-710B): 0 – 600 ppb

Physical Specifications

  • Dimensions: 180 × 80 × 38.5 mm
  • Weight: Approx. 380 g (without batteries)
  • Operating Temperature: 0 – 40°C
  • Storage Temperature: -20 – 60°C
