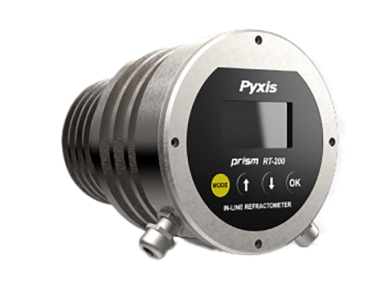

Pyxis RT-200 PRISM High Temperature Inline Refractometer

  • NG # 04353-HW-PYXIS-012

The Pyxis RT-200 PRISM High Temperature Inline Refractometer is a robust digital inline sensor designed to measure refractive index and concentration of liquids in real-time. It is suitable for high-temperature industrial processes such as sugar production, glycol monitoring, and heat transfer fluid applications, delivering accurate and continuous process control data.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis RT-200 PRISM is an advanced inline refractometer that provides direct and highly accurate concentration measurement by analyzing the refractive index of process liquids. It is designed for demanding industrial environments where continuous monitoring is required, especially in high-temperature and high-pressure applications.

The device operates as a stand-alone unit with built-in display, data logging, and Bluetooth connectivity for easy configuration and monitoring. It supports industrial communication protocols such as 4–20 mA output and RS-485 Modbus, making it compatible with PLC, DCS, and other control systems.

It is widely used in industries such as food and beverage, chemical processing, and HVAC systems for glycol and sugar concentration monitoring. The instrument also includes temperature compensation algorithms to ensure accurate readings under varying process conditions.

Specification

  • Measurement Parameters
    • Refractive Index: 1.30000 – 1.5100
    • Brix: 0.00 – 85.00%
    • Mono-Ethylene Glycol (MEG): 0.00 – 100.00%
    • Mono-Propylene Glycol (MPG): 0.00 – 100.00%
    • Advanced Low Viscosity Fluid: 0.00 – 100.00%
    • Temperature: -20°C to 80°C (sample up to 120°C)
  • Accuracy
    • Refractive Index: ±0.0002
    • Brix & Glycol: ±0.2%
  • Resolution
    • Refractive Index: 0.0001
    • Brix & Glycol: 0.1%
  • Process Conditions
    • Max Pressure: ≤142 psi (0.98 MPa)
    • Flow Rate: <13.5 GPM
  • Outputs & Communication
    • 4–20 mA analog output
    • RS-485 Modbus RTU
    • Bluetooth 5.0
  • Construction & Protection
    • Stainless steel (316L) body
    • Sapphire optical components
    • IP67 protection rating
  • Power Supply
    • 24 VDC (low power consumption ~1.5 W)
  • Additional Features
    • Built-in temperature compensation algorithms
    • Data logging capability
    • Stand-alone operation with display interface
    • Optional ultrasonic cleaning system support
