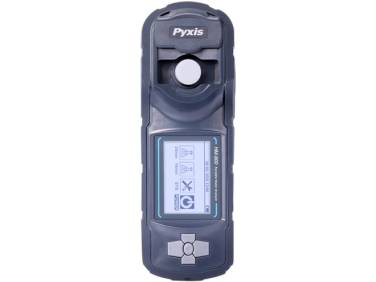

Pyxis HM-900 Fluorometer

  • NG # 04355-HW-PYXIS-014

The Pyxis HM-900 Fluorometer is a handheld portable oil-in-water analyzer designed for rapid detection and measurement of oil contamination in water. It uses UV fluorescence technology to provide accurate readings of multiple oil types in environmental and industrial water samples, making it suitable for field and laboratory applications.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis HM-900 is a professional-grade portable fluorometer used for measuring oil concentration in water using UV fluorescence. It is capable of detecting various petroleum-based oils such as marine crude oil, diesel/kerosene, and heavy fuel oil. The device supports both direct measurement and solvent extraction methods, allowing flexibility based on sample type and field conditions.

It features dual-wavelength UV LED technology (365 nm excitation and multiple emission channels) with automatic range selection for improved accuracy. The instrument includes pre-programmed calibration curves for common oil types, and it also allows users to create custom calibration curves for specific applications.

The HM-900 is widely used in environmental monitoring, industrial wastewater analysis, marine discharge monitoring, and leak detection in systems such as heat exchangers and storage tanks. Its portability, battery operation, and wireless data handling (via uPyxis software) make it highly practical for on-site testing.

Specification

  • Measurement principle: UV fluorescence
  • Oil types detected: Marine oil, diesel/kerosene, heavy fuel oil
  • Measurement range: 0.1 to 1000 ppm (auto-ranging)
  • Detection limit: 0.1 ppm (marine/offshore oil)
  • Wavelengths: 365/470 nm and 470/650 nm (excitation/emission)
  • Calibration: Pre-programmed + up to 7 user-defined curves
  • Sample compatibility: 16 mm and 24 mm vials
  • Display: 192 × 128 LCD, sunlight readable
  • Power supply: 4 AA alkaline batteries
  • Battery life: Approx. 2 months
  • Operating temperature: -10°C to 50°C
  • Protection rating: IP65
  • Weight: ~510 g
  • Connectivity: Wireless data upload via uPyxis
  • Functions: Color & turbidity compensation, automatic range switching
