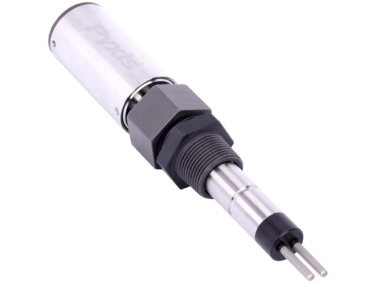

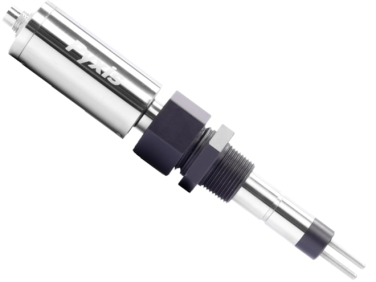

Pyxis CR-Series LPR Corrosion Rate Sensor

  • NG # 04347-HW-PYXIS-006

The Pyxis CR-Series LPR Corrosion Rate Sensor provides real-time monitoring of general and localized corrosion in aqueous systems using advanced linear polarization resistance (LPR) technology, ensuring accurate and reliable performance for water treatment and industrial applications.

Manufactured By :
Pyxis
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pyxis CR-Series LPR Corrosion Rate Sensor is designed for precise and continuous corrosion monitoring in water-based systems such as cooling towers, process water loops, and domestic water networks. Utilizing the Linear Polarization Resistance (LPR) method, the sensor delivers instant corrosion rate measurements in mils per year (MPY), eliminating the delays associated with traditional corrosion coupon testing.

This series includes multiple models such as the CR-200, CR-300, and CR-301, offering flexible configurations for different operational needs. The CR-200 is a battery-powered, Bluetooth-enabled portable sensor, while the CR-300 and CR-301 provide wired outputs including 4–20 mA and RS-485 for seamless integration with control systems.

Engineered with built-in signal conditioning and conductivity compensation, the sensor ensures stable and accurate readings even in varying water qualities. It also incorporates electrochemical noise analysis to detect localized corrosion and pitting, providing a comprehensive corrosion profile. Its durable stainless steel or titanium construction and high protection ratings make it suitable for demanding industrial environments.

Specification

  • Measurement Method: Linear Polarization Resistance (LPR)
  • General Corrosion Range: 0.001 to 10.000 MPY (expandable up to 995 MPY)
  • Localized Corrosion Range: 0.001 to 100 (index)
  • Resolution: 0.001 MPY
  • Conductivity Compensation: 10 to 10,000 µS/cm (up to 50,000 µS/cm for advanced models)
  • Output Options:
    • Bluetooth (CR-200)
    • 4–20 mA and RS-485 Modbus (CR-300/CR-301)
  • Power Supply:
    • Battery-powered (CR-200)
    • 24V DC (CR-300/CR-301)
  • Operating Temperature:
    • Standard: 14 to 122°F (-10 to 50°C approx.)
    • Extended (CR-301): up to 240°C
  • Pressure Rating:
    • Up to 100 psi (standard models)
    • Up to 500 psi (CR-301)
  • Protection Rating: IP65 (IP68 for high-end model)
  • Materials: 304 Stainless Steel / Titanium + PEEK (model dependent)
  • Communication & Configuration: Bluetooth with uPyxis app support
  • Applications: Cooling water systems, process water, domestic water monitoring
