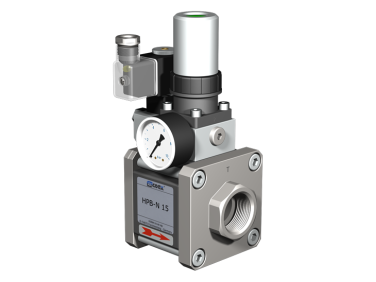

Pressure Control Valves HPB-N 15

  • NG # 04072-HW-coax-017

The Co-Ax HPB-N 15 Pressure Control Valve is a compact bypass pressure limitation valve designed for controlled pressure regulation in fluid systems. It is suitable for liquids and contaminated or viscous media, featuring reliable pressure regulation, robust protection, and industry-standard electrical connections for automated control.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB-N 15 pressure control valve by Co-Ax is engineered to maintain stable system pressure within a defined range. Installed typically in the return line of fluid circuits, it acts as a bypass valve that limits system pressure and protects pumps and piping from overpressure. The valve operates electro-pneumatically, enabling active pressure control when electrical power is supplied. Adaptable to various industrial applications involving liquids and viscous media, the HPB-N 15 supports efficient pressure management and integration with standard industrial electrical interfaces.

Specification

General Specifications

  • Valve type: Bypass pressure control / pressure limitation valve
  • Series: HPB-N 15
  • Application: Pressure regulation in liquid and highly viscous or contaminated media circuits

Performance

  • Pressure regulation range: 1 to 16 bar
  • Settling time: Less than 900 milliseconds

Construction & Materials

  • Ports: Threaded connection (G 1)
  • Protection class: IP65
  • Insulation rating: H (up to 180 °C)

Electrical & Control

  • Energized duty rating: ED 100%
  • Electrical connection: Plug according to DIN EN 175301-803, Form A (4 positions, 90°)
  • Compatible with M12x1 connector (DESINA/VDMA)

Operating Conditions

  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C

Application Notes

  • Designed for use with liquid media that may be viscous or contaminated
  • Valve design may vary based on specific application requirements (materials, sealing, characteristics)
