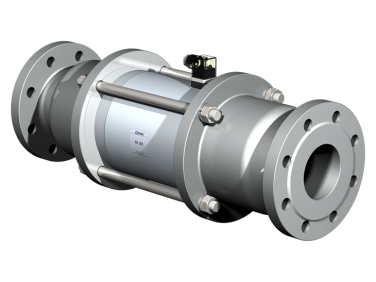

2/2 Way coaxial Direct Acting Valves FK 80

  • NG # 04068-HW-coax-013

The FK 80 2/2‑Way Coaxial Direct Acting Valve is a high‑performance solenoid‑driven valve engineered for controlling flow of a wide range of media including gaseous, liquid, highly viscous, gelatinous, and contaminated fluids. It features a pressure‑balanced coaxial design that ensures consistent and reliable switching performance across its rated range. Available in normally closed or normally open configurations, the valve supports flange connections and offers robust electrical and mechanical characteristics suitable for industrial applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FK 80 is part of the 2/2‑way coaxial direct acting valve family from müller co‑ax / Co‑Ax Valves, designed to provide dependable flow control in demanding industrial environments. These valves are solenoid actuated, hermetically sealed, and pressure‑balanced, enabling them to control fluids from low to moderate pressures without leakage even if internal seals are worn. The FK 80 model specifically offers high flow capacity with a Kv value of 92.0 m³/h, making it suitable for applications requiring significant throughput. Typical features include stable switching performance, compatibility with a broad spectrum of media, and flexible electrical actuation options. Its rugged build with an IP65 protection class and industrial‑grade insulation rating ensures durability and continuous duty capability. The valve design can be adapted to match specific material, sealing, and application demands.

Specification

General

  • Product type: 2/2‑way coaxial direct acting solenoid valve
  • Model: FK 80
  • Function: Normally Closed (NC) / Normally Open (NO)
  • Flow direction: A → B as marked
  • Pressure range: 0–16 bar standard (higher on request)
  • Kv value (flow factor): 92.0 m³/h
  • Port connection: flanges PN 16

Operating Parameters

  • Media types: gaseous, liquid, highly viscous, gelatinous, contaminated
  • Media temperature range: −20 °C to +80 °C (DC/AC)
  • Ambient temperature range: −20 °C to +80 °C (DC/AC)
  • Switching time: opening approx. 600 ms, closing approx. 800 ms
  • Maximum switching cycles: 20 1/min

Electrical / Actuation

  • Nominal voltage: 24 V DC +5%/−10%, 230 V AC 40‑60 Hz +5%/−10%
  • Actuation type: DC direct‑current magnet or AC magnet with integrated rectifier
  • Protection class: IP65
  • Insulation rating: H (180 °C)
  • Duty rating: ED 100%
  • Electrical connection: plug according to DIN EN 175301‑803 form A, 4 positions × 90°; wire diameter 6‑8 mm

Mechanical

  • Weight: approx. 38.0 kg
  • Hermetically sealed for reliable operation even with worn seals

Additional

  • Valve can be engineered to specific media and application requirements (materials and design variations possible)
