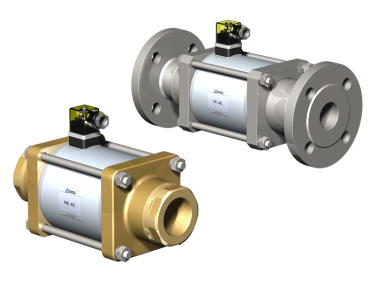

2/2 Way coaxial Direct Acting Valves MK / FK 40

  • NG # 04066-HW-coax-010

The MK / FK 40 is a 2/2-way coaxial direct-acting solenoid valve designed for reliable on-off fluid control in industrial applications. It features a pressure-balanced coaxial design suitable for gaseous, liquid, viscous, gel-like, or contaminated media, with either normally closed (NC) or normally open (NO) function and robust electrical actuation options.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK / FK 40 2/2-way coaxial direct acting valve provides compact and dependable solenoid-controlled flow regulation. Available with threaded or flanged port connections, it accommodates a wide range of media types and operating conditions. Its design delivers stable performance with high sealing integrity and is suitable for a variety of industrial process systems. Standard electrical connections meet common industry norms and the valve supports continuous duty operation.

Specification

General

  • Valve type: 2/2-way coaxial direct acting solenoid valve (MK / FK 40)
  • Function: Normally closed (NC) or normally open (NO)
  • Flow direction: A → B as marked on valve body

Mechanical / Flow Performance

  • Pressure range: 0-16 bar, 0-40 bar, or 0-63 bar depending on design
  • Flow coefficient (Kv): 21.8 m³/h
  • Switching cycles: 90 cycles/minute
  • Opening time: approx. 520 ms; closing time: approx. 150 ms

Media & Environment

  • Suitable media: gaseous, liquid, highly viscous, gelatinous, contaminated
  • Media temperature range (DC/AC): –20 °C to +100 °C
  • Ambient temperature range (DC/AC): –20 °C to +80 °C

Construction & Materials

  • Port connection: G 1 1/2 to G 2 threaded or flanged PN 16/40/100
  • Protection class: IP65
  • Insulation rating: H (180 °C)

Electrical

  • Nominal voltages: 24 V DC (+5%/–10%), 230 V AC 40-60 Hz (+5%/–10%)
  • Actuation type: direct-current magnet (DC), AC magnet with integrated rectifier
  • Energized duty rating: ED 100% (continuous duty)
  • Electrical connection: DIN EN 175301-803 plug, form A, 4 positions × 90°, wire diameter 6-8 mm

Weight

  • MK model: 14.0 kg
  • FK model: 18.0 kg

Optional Accessories

  • Electrical connections: DIN EN 175301-803 plugs, metal terminal box, connector form A
  • Limit switches: Icomatic, Balluff, Honeywell options
  • Mounting brackets
