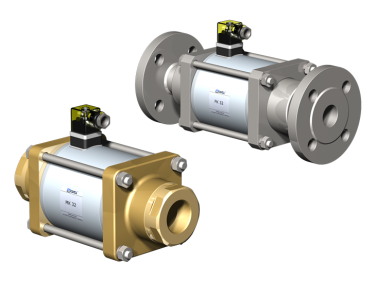

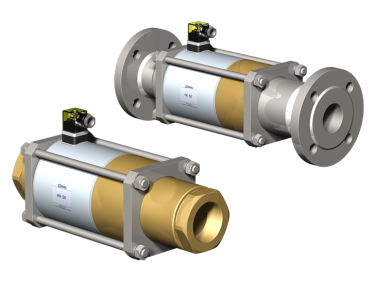

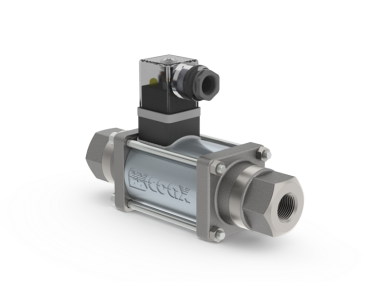

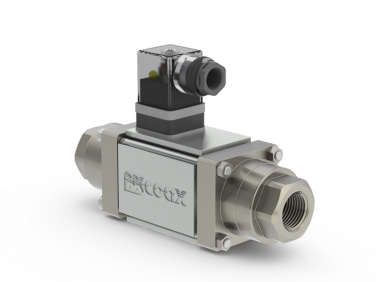

2/2 Way coaxial Direct Acting Valves MK / FK 32

  • NG # 04065-HW-coax-009

The MK / FK 32 is a 2/2-way coaxial direct acting solenoid valve designed for industrial fluid control applications. It is available in normally closed and normally open configurations with threaded or flanged connections. This valve handles gaseous, liquid, and contaminated media while offering a robust pressure range up to 100 bar and a flow coefficient of 17.4 m³/h. It features reliable switching performance, a compact design, and multiple electrical connection options.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK / FK 32 2/2-Way Coaxial Direct Acting Valve is part of the 2/2-way coaxial valve series engineered for electrically actuated control of liquids and gases. Its pressure-balanced design with spring return ensures consistent performance in demanding environments and media conditions. The valve is offered with threaded ports or flanged connections to suit different installation requirements.

With a broad pressure range and effective flow capacity, the MK / FK 32 is suitable for use across industrial sectors requiring precise and reliable fluid control. Its construction supports both DC and AC actuation with high duty cycle capability and environmental protection to IP65. Optional accessories enhance flexibility for integration, including varied electrical connections and limit switch options.

Specification

General

  • Type: 2/2-way coaxial direct acting solenoid valve, normally closed (NC) and normally open (NO) versions available
  • Model: MK / FK 32

Connections and Ports

  • Port connection sizes: Threads G 1 1/4 – G 1 1/2
  • Optional flanges: PN 16 / 40 / 63 / 100

Flow and Pressure

  • Pressure range: 0 – 16 / 0 – 40 / 0 – 63 / 0 – 100 bar
  • Kv value (flow coefficient): 17.4 m³/h
  • Flow direction: A → B as marked

Operating Characteristics

  • Switching cycles: 120 per minute
  • Switching time: Opening 440 ms, Closing 250 ms

Temperature Ratings

  • Media temperature (DC/AC): –20 °C to +100 °C
  • Ambient temperature (DC/AC): –20 °C to +80 °C

Electrical and Actuation

  • Nominal voltage: 24 V DC +5% / –10% and 230 V AC 40-60 Hz +5% / –10%
  • Actuation type: DC direct-current magnet or AC magnet with integrated rectifier
  • Insulation rating: H (180 °C)
  • Protection class: IP65
  • Energized duty rating: ED 100%
  • Electrical connection: Plug per DIN EN 175301-803, form A, 4 positions x 90°, wire diameter 6-8 mm

Weights

  • MK version: 13.5 kg
  • FK version: 17.5 kg

Applicable Media

  • Suitable for gaseous, liquid, highly viscous, gelatinous, and contaminated media

Accessories (Optional)

  • Electrical connectors including M12x1 DESINA / VDMA and DIN EN 175301-803 options
  • Metal terminal box, additional connectors
  • Limit switches (Icomatic, Balluff, Honeywell)
  • Mounting brackets

Other COAX Products

3/2 Way coaxial Direct Acting Valves MK 10 DR 40/100 bar
COAX Industrial Tools & Accessories 04070-HW-coax-015

Pressure Control Valves HPB 65
COAX Industrial Tools & Accessories 04078-HW-coax-023

2/2 Way coaxial Direct Acting Valves MK / FK 50
COAX Industrial Tools & Accessories 04066-HW-coax-011

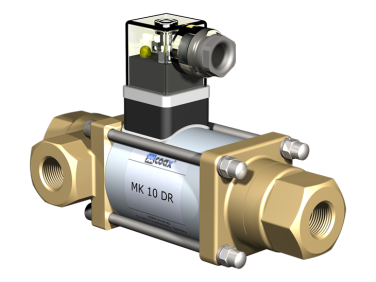

3/2 Way coaxial Direct Acting Valves MK 10 DR
COAX Industrial Tools & Accessories 04069-HW-coax-014

Pressure Control Valves HPB-S 32
COAX Industrial Tools & Accessories 04075-HW-coax-020

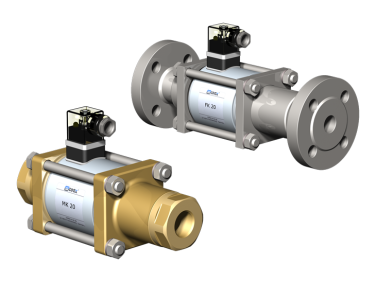

2/2 Way coaxial Direct Acting Valves MK / FK 20
COAX Industrial Tools & Accessories 04064-HW-coax-008

Pressure Control Valves SPB-S 15
COAX Industrial Tools & Accessories 04081-HW-coax-026

Pressure Control Valves SPB-N 32
COAX Industrial Tools & Accessories 04083-HW-coax-028

Flow Control Valves RMQ 32
COAX Industrial Tools & Accessories 04063-HW-coax-007

2/2 Way coaxial Direct Acting Valves MK 10
COAX Industrial Tools & Accessories 04057-HW-coax-001

Pressure Control Valves HPB-N 15
COAX Industrial Tools & Accessories 04072-HW-coax-017

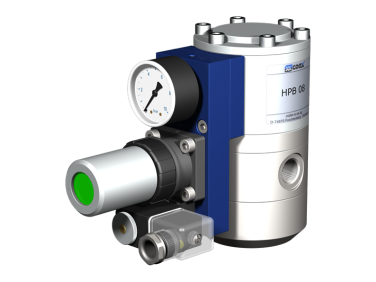

Pressure Control Valves HPB 08
COAX Industrial Tools & Accessories 04071-HW-coax-016

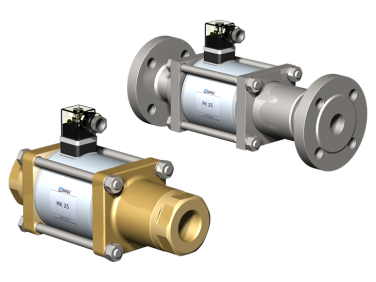

2/2 Way coaxial Direct Acting Valves MK / FK 25
COAX Industrial Tools & Accessories 04064-HW-coax-008

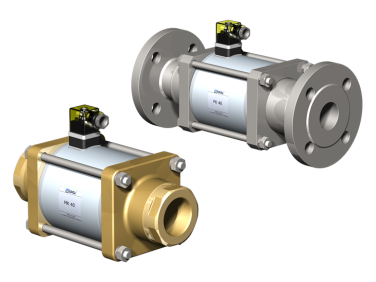

2/2 Way coaxial Direct Acting Valves MK / FK 40
COAX Industrial Tools & Accessories 04066-HW-coax-010

Pressure Control Valves SPB-H 32
COAX Industrial Tools & Accessories 04085-HW-coax-030

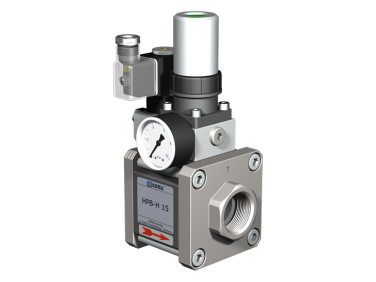

Pressure Control Valves HPB-H 15
