NG # 04075-HW-coax-020

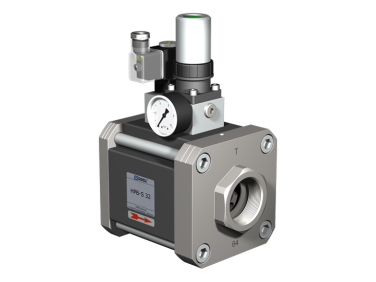

HPB-S 32 is a robust externally controlled pressure control valve designed for regulating fluid pressure in industrial systems. It offers a pressure regulation range from 5 to 63 bar, rapid response time, and reliable operation in challenging media conditions, including highly viscous or contaminated fluids. The valve supports continuous duty and features standardized electrical connections for flexible integration.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe HPB-S 32 pressure control valve is part of the co-ax series of pressure regulating valves engineered for industrial applications requiring precise pressure limitation and control. It features G 1 1/2 threaded ports and stepless pressure regulation across a broad range. With fast settling time and compatibility with various media types, the valve ensures dependable performance in systems where pressure stability is critical. The design supports protection class IP65 and class H insulation, making it suitable for demanding environments. Standardized electrical connections allow straightforward installation and integration with control systems. Due to the flexibility of valve design based on specific application requirements, material choices and characteristics may vary.
· Model: HPB-S 32 pressure control valve (externally controlled)
· Ports: threaded connection G 1 1/2 "
· Pressure regulation range: 5 to 63 bar
· Settling time: less than 900 ms
· Suitable media: liquid, highly viscous fluids, contaminated media
· Media temperature range: 0 °C to +60 °C
· Ambient temperature range: 0 °C to +50 °C
· Insulation rating: class H up to 180 °C
· Protection class: IP65
· Energized duty rating: ED 100 %
· Electrical connection: plug according to DIN EN 175301-803, form A (4 positions × 90°), wire diameter 6-8 mm; M12×1 connector according to DESINA / VDMA
· Accessory options: coil with connector M12×1 DESINA / VDMA; connector form B DIN EN 175301-803
· Notes: Actual design, sealing materials and characteristics can vary per application requirements
