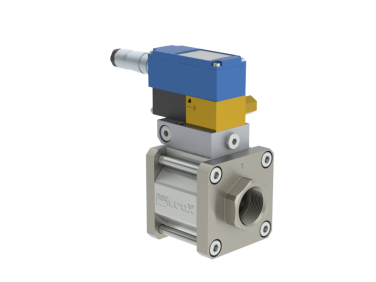

Pressure Control Valves SPB-H 15

  • NG # 04082-HW-coax-027

The SPB‑H 15 is a pressure control (bypass) valve designed for precise regulation of system pressure in fluid circuits. It is part of the SPB series of pressure control valves by müller co‑ax, suitable for use with various liquid media including highly viscous and contaminated fluids. The valve is engineered to maintain a stable pressure level by adjusting flow dynamically through a bypass return, making it ideal for coolant and fluid delivery systems that require consistent pressure under varying flow conditions.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SPB‑H 15 is an externally controlled proportional pressure control valve with a threaded port connection. It offers stepless regulation within a high pressure range and is built to withstand industrial environments with thermal and ingress protection ratings. The design accommodates a wide variety of liquid media including viscous and contaminated fluids, ensuring reliable performance where precise pressure control is required.

Specification

General

  • Model: SPB‑H 15 pressure control valve (bypass type)
  • Series: SPB (pressure control valves)
  • Valve type: Proportional pressure control / limitation valve

Pressure and Flow

  • Pressure regulation range: 5–120 bar
  • Stepless pressure regulation capability
  • Flow factor (approximate): 6 m³/h (typical for DN 15 in SPB‑H 15 series)

Connections

  • Port connection: Threads G 1 (standard)
  • Electrical connection: Plug with 7 contacts, wire diameter 6–8 mm

Media & Temperature

  • Suitable media: Liquid, highly viscous, contaminated fluids
  • Media temperature: 0 °C to +60 °C
  • Ambient temperature: 0 °C to +50 °C

Performance

  • Settling time: Less than 900 ms
  • Protection rating: IP65
  • Insulation rating: H 180 °C
  • Energized duty rating: ED 100%

Design Notes

  • Technical design may vary depending on application and media requirements (e.g. sealing materials, valve characteristics)
  • Available options and accessories may include alternative connections, materials, and control interfaces (refer to manufacturer documentation)
