Flow Control Valves RMQ 15 PC

  • NG # 04061-HW-coax-005

The RMQ 15 PC is an electro-motor-controlled flow control valve designed for precise stepless regulation of fluid flow in industrial systems. It features a compact cartridge-style design with low power consumption, robust protection rating, and compatibility with a wide range of gaseous and liquid media. The valve provides reliable performance up to 25 bar and is suitable for applications requiring accurate dosing and flow modulation.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RMQ 15 PC belongs to the Flow Control Valves series by müller co-ax gmbh. It uses an electric motor to adjust and hold the valve stroke steplessly, enabling fine flow control for demanding applications. The cartridge design allows easier on-site replacement and maintenance. With its IP65 protection and duty rating for continuous operation, the valve is engineered for industrial automation systems handling a variety of media types.

Specification

General Characteristics

  • Type: Flow control valve, electro-motorically controlled
  • Design: Cartridge type for precise stepless stroke regulation
  • Function: Stepless regulation of flow rate

Physical and Mechanical

  • Ports / Threads: G 1/2 to G 3/4
  • Nominal Diameter (DN): 15 mm
  • Protection Rating: IP65
  • Energized Duty Rating: ED 100%
  • Operating Time: Approx. 13 sec (closed to open)

Performance

  • Pressure Range: 0 to 25 bar
  • Kv Value: Up to 5.9 m³/h
  • Media Types: Gaseous, liquid, highly viscous, contaminated
  • Media Temperature Range: 0 °C to +80 °C
  • Ambient Temperature: Maximum +70 °C

Electrical

  • Connection: M12x1 concentric socket, 5-pole, wire diameter 6-8 mm
  • Power Consumption: Low (valve holds position with minimal power draw)

Operational Notes

  • The valve’s design and material selection can vary based on media and application requirements, which may affect specific characteristics and performance.

Other COAX Products

Pressure Control Valves SPB-H 15
COAX Industrial Tools & Accessories 04082-HW-coax-027

Pressure Control Valves HPB-H 15
COAX Industrial Tools & Accessories 04073-HW-coax-018

3/2 Way coaxial Direct Acting Valves MK 10 DR 40/100 bar
COAX Industrial Tools & Accessories 04070-HW-coax-015

3/2 Way coaxial Direct Acting Valves MK 10 DR
COAX Industrial Tools & Accessories 04069-HW-coax-014

Pressure Control Valves SPB-N 15
COAX Industrial Tools & Accessories 04080-HW-coax-025

Pressure Control Valves HPB-N 32
COAX Industrial Tools & Accessories 04074-HW-coax-019

2/2 Way coaxial Direct Acting Valves MK / FK 25
COAX Industrial Tools & Accessories 04064-HW-coax-008

2/2 Way coaxial Direct Acting Valves MK / FK 20
COAX Industrial Tools & Accessories 04064-HW-coax-008

Flow Control Valves RMQ 10 PC
COAX Industrial Tools & Accessories 04060-HW-coax-004

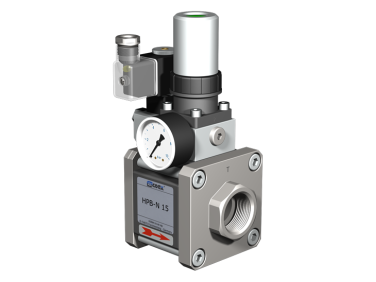

Pressure Control Valves HPB-N 15
COAX Industrial Tools & Accessories 04072-HW-coax-017

Pressure Control Valves SPB-S 32
COAX Industrial Tools & Accessories 04084-HW-coax-029

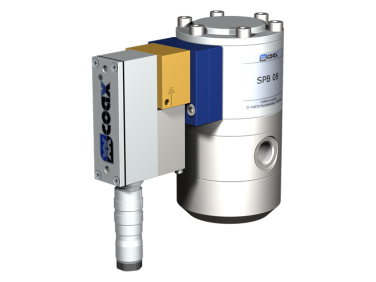

Pressure Control Valves SPB 08
