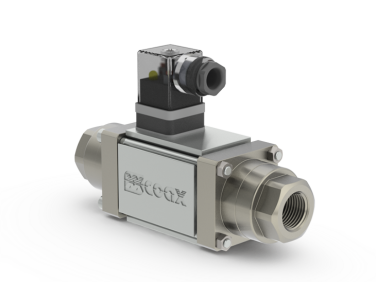

2/2 Way coaxial Direct Acting Valves MK 10 63/100 bar

  • NG # 04058-HW-coax-002

The MK 10 63/100 bar 2/2-way coaxial direct acting valve is an electrically actuated solenoid valve designed for reliable control of gaseous, liquid, or contaminated media. It features a compact coaxial design with normally closed (NC) or normally open (NO) options, supports high pressure ranges up to 100 bar, and offers robust electrical interfacing with standard industrial connectors. This valve is suitable for demanding industrial fluid control applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK 10 63/100 bar valve from Co-Ax is a 2-position, 2-port coaxial direct acting valve engineered for precise on/off control of various media. Its coaxial structure ensures balanced internal forces and consistent performance across pressure ranges. The valve body accommodates common threaded connections and supports standard electrical actuation options, making it versatile for integration into automated systems. Typical applications include pneumatic and hydraulic circuits, process control, and fluid handling where durability and tight shutoff characteristics are required.

Specification

 General

  • Valve type: 2/2-way coaxial direct acting solenoid valve
  • Configuration: Normally Closed (NC) or Normally Open (NO)
  • Function: On/off control of media flow

Mechanical

  • Port connections: 1/4 to 3/4 NPT threaded
  • Pressure range: 0–960 psi / 0–1500 psi (approx. 0–63 bar / 0–100 bar)
  • Flow coefficient (Cv):
    • 0–960 psi: 2.6 GPM
    • 0–1500 psi: 1.8 GPM
  • Media: Gaseous, liquid, contaminated fluids
  • Flow direction: As marked (A to B)

Performance

  • Switching cycles: 200 per minute
  • Switching time:
    • Opening: 135 ms
    • Closing: 20 ms
  • Media temperature range: +14 °F to +212 °F
  • Ambient temperature range: +14 °F to +176 °F
  • Weight: Approximately 2.2 kg

Electrical

  • Nominal voltage:
    • 24 V DC +5 % / −10 %
    • 230 V AC 40-60 Hz +5 % / −10 %
  • Actuation: DC direct-current magnet or AC magnet with integrated rectifier
  • Insulation rating: H (180 °C)
  • Protection class: IP65
  • Energized duty rating: 100 % ED
  • Electrical connection:
    • DIN EN 175301-803 plug, form A
    • M12x1 connector (DESINA / VDMA)
