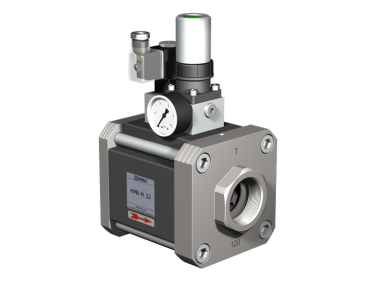

Pressure Control Valves HPB-H 32

  • NG # 04076-HW-coax-021

The HPB-H 32 is an externally controlled pressure limitation valve designed for industrial fluid systems. It provides stepless pressure regulation up to 120 bar and is suitable for liquids including highly viscous and contaminated media, with robust protection and connection options for electrical control.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB-H 32 pressure control valve from müller co-ax is part of the HPB family of pressure control and pressure limiting valves. It is intended for integration into hydraulic or cooling circuits where maintaining or limiting system pressure is required. The valve features an electropneumatic design that allows pressure control when energized and bypass flow when de-energized. With a G 1 1/2 threaded port size and a broad regulation range, it balances performance with rugged industrial suitability. The valve is rated for continuous duty and protected to IP65 for harsh environments.

Specification

General

  • Model: HPB-H 32 pressure control valve
  • Type: Externally controlled pressure limitation valve

Pressure & Flow

  • Pressure regulation range: 5–120 bar

Size & Connections

  • Port size: Threads G 1 1/2
  • Electrical connection: Plug according to DIN EN 175301-803 Form A, 4 positions × 90° with 6–8 mm wire diameter
  • Optional connector: M12x1 conforming to DESINA / VDMA

Operating Conditions

  • Media compatibility: Liquid, highly viscous, contaminated
  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C

Performance

  • Settling time: Less than 900 ms
  • Duty rating: ED 100% (continuous operation)

Protection & Durability

  • Protection class: IP65
  • Insulation rating: H 180 °C

Additional Information

  • Valve design may vary based on specific media or application requirements, affecting sealing materials and characteristics.
