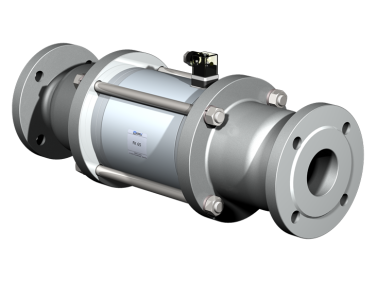

2/2 Way coaxial Direct Acting Valves FK 65

  • NG # 04067-HW-coax-012

The FK 65 is an industrial 2/2-way coaxial direct acting solenoid valve designed for reliable control of gaseous, liquid, highly viscous, gelatinous or contaminated media. It is available in normally closed (NC) and normally open (NO) configurations with flanged connections and electrical actuation for continuous duty applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FK 65 coaxial direct acting valve offers a pressure-balanced design for stable performance in demanding process environments. It is suitable for a wide range of fluid types and operating conditions, featuring hermetic sealing and rugged construction for industrial use. With options for DC and AC coil actuation and standard protective ratings, it is engineered for consistent switching and long service life.

Specification

General

  • Product type: 2/2-way coaxial direct acting solenoid valve
  • Model: FK 65
  • Function: Normally closed (NC) / Normally open (NO)
  • Orifice size / nominal: DN 65 mm (as part of series classification)
  • Port connection: Flanges PN 16

Performance

  • Pressure range: 0 to 16 bar
  • Flow coefficient (Kₙ value): 62.0 m³/h
  • Suitable media: Gaseous, liquid, highly viscous, gelatinous, contaminated
  • Flow direction: A → B as marked
  • Switching cycles: 20 1/min
  • Switching times: Opening 600 ms; Closing 800 ms

Operating Conditions

  • Media temperature range (DC and AC): –20 °C to +80 °C
  • Ambient temperature range: –20 °C to +80 °C

Electrical

  • Nominal voltage: 24 V DC (+5 % / –10 %)
  • Nominal voltage: 230 V AC 40-60 Hz (+5 % / –10 %)
  • Actuation: DC direct-current magnet; AC direct-current magnet with integrated rectifier
  • Insulation rating: H (180 °C)
  • Protection class: IP65
  • Duty rating: ED 100 %
  • Electrical connection: Plug acc. DIN EN 175301-803, form A, 4 positions at 90°, wire diameter 6-8 mm

Physical

  • Approximate weight: 35 kg

Accessories and Options

  • DIN EN 175301-803 electrical connector
  • Metal terminal box
  • Connector form A (DIN EN 175301-803)
  • Limit switches (Icomatic / Balluff)
