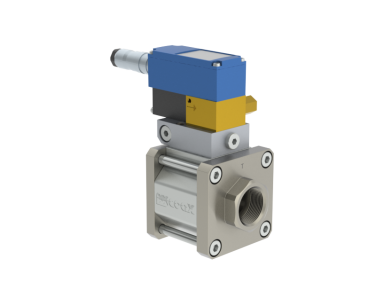

Pressure Control Valves SPB-N 15

  • NG # 04080-HW-coax-025

The SPB‑N 15 is an industrial pressure control valve designed for precise regulation of liquid media, including highly viscous and contaminated fluids. It supports a continuous pressure regulation range with rapid response and robust construction suitable for demanding environments.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SPB‑N 15 belongs to the SPB series of pressure control (bypass) valves used to maintain stable pressures in fluid systems by returning excess fluid to the tank without pressure fluctuation. This makes it ideal for applications where consistent pressure control is needed despite changes in flow demand.

Key aspects include electropneumatic control, compatibility with a variety of liquid media, and high protection and insulation ratings for industrial use. The valve design may vary based on specific media or application requirements.

Specification

General Technical Data
• Port connections: threads G 1
• Pressure regulation range: 1–16 bar
• Settling time (response time): less than 900 ms
• Media type: liquid, highly viscous, contaminated
• Media temperature range: 0 °C to +60 °C
• Ambient temperature range: 0 °C to +50 °C
Electrical and Environmental
• Insulation rating: H 180 °C
• Protection class: IP65
• Energized duty rating: ED 100 %
• Connection type: plug with 7 contacts, wire diameter 6–8 mm
Design Notes
• Valve materials, sealing types and other design features can vary based on the specific application and media compatibility requirements.
