NG # 04084-HW-coax-029

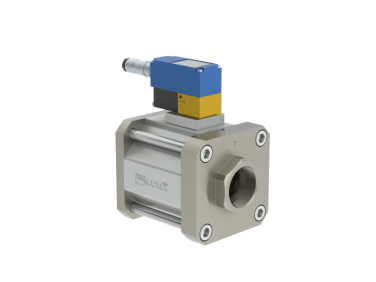

The SPB‑S 32 is an electropneumatic pressure control valve designed for bypass pressure control in fluid systems. It offers stepless regulation within a 5 – 63 bar range and features fast response performance with settling times under 900 ms. Built for use with liquid and viscous contaminated media, the valve supports a robust duty cycle and protection class suitable for industrial environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe SPB‑S 32 pressure control valve from müller co‑ax is part of the SPB series of bypass valves for hydraulic and coolant circuits. It is engineered for continuous pressure regulation and rapid response, making it suitable for applications requiring stable system pressure under varying load conditions. The valve’s construction supports a wide range of liquids, including highly viscous and contaminated fluids, and is built to withstand industrial ambient conditions with an IP65 protection rating and class H insulation.
The electrical interface uses a plug with seven contacts, and the valve’s design may be adapted to meet specific media or application needs, including variations in sealing materials and characteristics.
· Pressure regulation range: 5 to 63 bar
· Port thread size: G 1 1/2
· Settling time: less than 900 ms
· Suitable media types: liquid, highly viscous, contaminated
· Media temperature range: 0 °C to +60 °C (32 °F to 140 °F approx.)
· Ambient temperature range: 0 °C to +50 °C
· Insulation rating: class H (180 °C)
· Protection rating: IP65
· Duty cycle: 100% energized duty rating (ED 100%)
· Electrical connection: plug with 7 contacts, wire diameter 6 – 8 mm
· Design can vary based on media and application requirements
