2/2 Way coaxial Direct Acting Valves MK / FK 50

  • NG # 04066-HW-coax-011

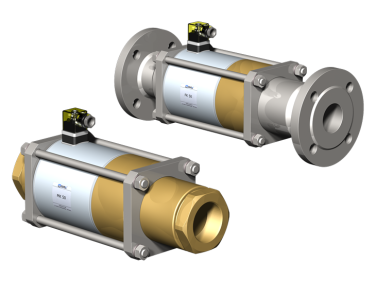

The MK / FK 50 is a direct acting 2/2-way coaxial solenoid valve designed for controlling the flow of gaseous, liquid, viscous, and contaminated media. Built to operate reliably under pressures up to 16 bar with a Kᵥ value of 38 m³/h, it is available in both threaded (MK) and flanged (FK) port connections. The valve supports normally closed or normally open operation and features robust electrical and mechanical characteristics for industrial applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK / FK 50 2/2-way coaxial direct acting valve is part of the CO-AX range of solenoid-operated valves engineered for diverse industrial fluid control tasks. Its coaxial design ensures balanced forces within the valve to provide consistent switching performance regardless of pressure variations. It is suitable for use with a wide range of media, including liquids and gases, even if highly viscous or contaminated. The valve supports both normally closed and normally open configurations, with electrical actuation options at 24 V DC or 230 V AC. It features a solid construction with high protection and insulation ratings, making it suitable for demanding environments. The MK model uses threaded ports while the FK model uses PN 16 flanged connections, both complying with standard industrial interfaces. Operation characteristics such as switching cycles and times allow for efficient process control. Valve specifications may be customized with different materials or accessories based on application needs.

Specification

Valve Model

  • Model: MK / FK 50 2/2-way direct acting coaxial valve

General Function

  • Direct acting 2/2-way coaxial solenoid valve
  • Available in normally closed (NC) or normally open (NO) configurations

Connections

  • Ports: threaded connection G 2 (MK)
  • Flanges: PN 16 (FK)

Pressure and Flow

  • Pressure range: 0 to 16 bar
  • Flow coefficient (Kᵥ): 38.0 m³/h

Media Compatibility

  • Suitable for gaseous, liquid, highly viscous, gelatinous, and contaminated media

Operational Characteristics

  • Flow direction: A to B as marked
  • Switching cycles: 40 cycles/min
  • Switching time: Opening 400 ms; Closing 400 ms

Temperature Ratings

  • Media temperature (DC/AC): -20 °C to +80 °C
  • Ambient temperature (DC/AC): -20 °C to +80 °C

Electrical & Actuation

  • Nominal voltages: 24 V DC (+5 % / -10 %); 230 V AC 40-60 Hz (+5 % / -10 %)
  • Actuation: DC direct-current magnet; AC magnet with integrated rectifier
  • Protection rating: IP65
  • Insulation rating: H 180 °C
  • Duty rating: ED 100 %
  • Electrical connection plug: DIN EN 175301-803, Form A, 4 positions × 90°, suitable for wire diameter 6-8 mm

Weight

  • MK version: 25.5 kg
  • FK version: 31.0 kg

Additional Notes

  • Valve design may vary depending on media and specific application requirements (materials, seals, and characteristics).
