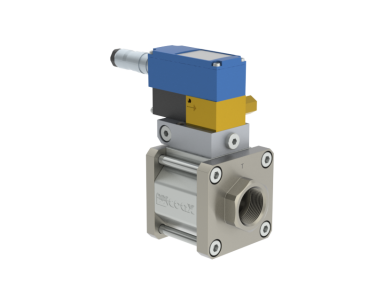

Pressure Control Valves SPB-S 15

  • NG # 04081-HW-coax-026

The SPB‑S 15 pressure control valve from müller co‑ax is a proportional bypass valve designed for precise pressure regulation in fluid systems. It supports a wide range of liquid media including viscous and contaminated fluids, operates within a 5 – 63 bar pressure range, and offers fast response times and robust IP65 environmental protection. Typical control interfaces include standard industrial control signals such as 0‑10 V or 4‑20 mA.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SPB‑S 15 is part of the SPB series of pressure control valves engineered for use in industrial fluid applications where consistent pressure regulation is essential. Its design allows continuous, stepless pressure control and is suitable for installations where media quality varies, including viscous or contaminated liquids. Built to withstand demanding environments, the valve features durable insulation and protection ratings, rapid dynamic response, and flexible electrical connections. Typical applications include coolant pressure control, bypass pressure limiting, and integration with automated pump systems requiring reliable pressure feedback and control.

Specification

  • Model: SPB‑S 15 pressure control valve
  • Valve type: Externally controlled proportional pressure control/bypass valve
  • Connection type: threaded ports G 1
  • Pressure regulation range: 5 – 63 bar
  • Flow capacity: nominal ~6.0 m³/h
  • Settling time: < 900 ms
  • Media types: liquid, highly viscous, contaminated
  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C
  • Protection class: IP65
  • Insulation rating: H (180 °C)
  • Energized duty rating: ED 100%
  • Electrical connection: plug with 7 contacts, suitable for 6‑8 mm wire
  • Control signal options (typical, per datasheet): 0‑10 V or 4‑20 mA
  • Nominal voltage: DC 24 V (typical)
  • Seal materials: FPM, PTFE (common options)
  • Optional features: SAE connection per DIN ISO 6162, alternative materials and actuator options
