NG # 04062-HW-coax-006

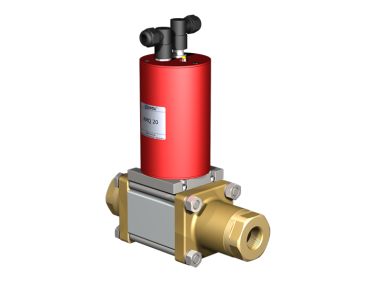

The RMQ 20 Flow Control Valve from CO-AX is an electrically actuated, steplessly adjustable control valve designed to regulate fluid flow precisely in industrial systems. It features a coaxial design suitable for gaseous, liquid, viscous, and contaminated media, and supports a broad operating pressure range. The valve offers fast response time, robust protection rating, and energy-efficient performance for automated flow control applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe RMQ 20 valve is part of CO-AX’s RMQ series of flow control valves that provide precise regulation of flow rates in industrial fluid systems. It is built with a pressure-equalized design that enables a wide pressure range and significant flow capacity, combined with low power consumption. Typical applications include cooling systems, oil circulation, emulsions, water handling, and other processes involving gaseous or liquid media. The valve’s electric actuation allows for stepless adjustment and integration into automated control systems. Protection to IP65 and temperatures suitable for various environments further enhance its versatility.
· Model: RMQ 20 Flow Control Valve (CO-AX)
· Valve type: Electrically actuated flow control valve with stepless adjustment
· Port size: Threads G 3/4 to G 1
· Flow coefficient (Kₙ): Up to 7.3 m³/h
· Pressure range: 0 – 63 bar
· Suitable media: Gaseous, liquid, highly viscous, and contaminated media
· Operating time: Approx. 3 seconds
· Media temperature range: -20 °C to +80 °C
· Ambient temperature: Maximum +70 °C
· Protection class: IP65
· Energized duty rating: ED 100 %
· Electrical connection: M12x1 concentric socket (DIN 40040), 5 poles, wire diameter 6-8 mm
· Accessories: Mounting brackets available
