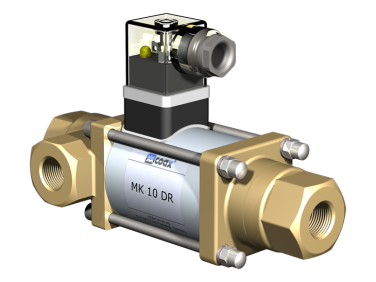

3/2 Way coaxial Direct Acting Valves MK 10 DR

  • NG # 04069-HW-coax-014

The MK 10 DR is a compact 3/2‑way coaxial direct acting solenoid valve designed for reliable control of gaseous or liquid media, including contaminated fluids. It features pressure‑balanced coaxial construction, versatile port sizes (G 1/4 to G 3/4), and efficient electrical actuation with options for both DC and AC operation. The valve provides consistent performance with high switching frequency and robust environmental protection.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK 10 DR 3/2‑way coaxial direct acting valve from Muller co‑ax GmbH is engineered for precise fluid control applications where compact size and dependable operation are essential. With a pressure‑balanced coaxial design and spring return, it supports both normally closed and normally open configurations. Threaded port options (G 1/4 to G 3/4) accommodate standard process connections, while the valve operates effectively across a broad media temperature range. Its electrical actuation system is compatible with 24 V DC or 230 V AC and features integrated rectifier options as well as multiple connector standards.

Performance highlights include a flow coefficient of 2.6 m³/h and rapid switching speeds, making it suitable for automated systems requiring frequent cycles. Robust construction with IP65 protection and Class H insulation ensures durability in industrial environments. Accessories such as alternative electrical connectors and mounting hardware further enhance installation flexibility.

Specification

Valve Type and Function

  • 3/2‑way coaxial direct acting solenoid valve, pressure‑balanced design with spring return (normally closed / normally open)

Ports and Connections

  • Threaded ports: G 1/4 to G 3/4
  • Electrical connection options: plug DIN EN 175301‑803 (form A), M12x1 DESINA/VDMA connector

Pressure and Flow

  • Operating pressure range: 0–16 bar and 0–25 bar depending on flow direction
  • Maximum pressures (e.g., A → B 25 bar, B → A 16 bar, A → C 25 bar, C → A 25 bar)
  • Flow coefficient (Kv): 2.6 m³/h

Media and Temperatures

  • Suitable media: gaseous, liquid, contaminated
  • Media and ambient temperature range: ‑10 °C to +80 °C (DC and AC)

Actuation and Electrical

  • Nominal voltage: 24 V DC (+5%/-10%), 230 V AC 40‑60 Hz (+5%/-10%)
  • Actuation: DC magnet; AC magnet with integrated rectifier
  • Insulation rating: Class H (180 °C)
  • Protection class: IP65
  • Energized duty rating: ED 100%

Performance and Operation

  • Switching cycles: up to 200 per minute
  • Switching time: opening ~40 ms, closing ~25 ms

Physical

  • Weight: approx. 2.2 kg

Additional Options & Accessories

  • Various electrical connection interfaces (M12x1 DESINA/VDMA, DIN EN 175301‑803), metal terminal box
  • Mounting brackets available
