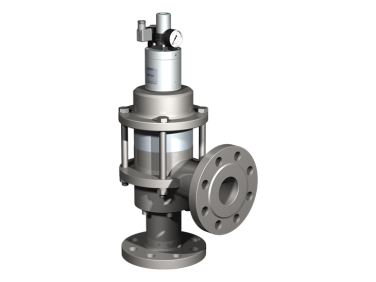

Pressure Control Valves HPB 65

  • NG # 04078-HW-coax-023

The HPB 65 pressure control valve is an industrial bypass valve designed for precise pressure regulation in fluid systems with liquid, viscous, or contaminated media. It offers a regulated pressure range of 5 – 63 bar, rapid response under 400 milliseconds, and robust environmental protection (IP65), making it suitable for demanding applications where stability and reliable control are required.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB 65 from Müller co-ax is part of the company’s series of electro-pneumatically operated pressure control (bypass) valves. It is engineered to maintain consistent system pressure by returning excess fluid to the tank, protecting pumps and lines from overpressure while ensuring stable operation even with fluctuating flow demands. Designed for industrial use, the valve supports a broad range of liquid media, including those that are highly viscous or contain contaminants.

This valve features a flange PN 63 connection, an IP65 protection class for harsh environments, continuous duty capability, and standardized electrical interfaces (plug and M12 options). The compact and responsive design provides dependable pressure regulation with a fast settling time, suitable for machine tool coolant systems, fluid circuits with variable demand, and other automated fluid control systems. Technical configurations may be adapted based on specific media and installation requirements.

Specification

General

  • Product type: Pressure control valve HPB 65 (bypass type)
  • Port connection: Flanges PN 63
  • Protection rating: IP65
  • Insulation rating: H (180 °C)
  • Duty rating: ED 100% (continuous duty)

Performance

  • Pressure regulation range: 5 – 63 bar
  • Settling/regulation time: < 400 ms

Media & Environment

  • Suitable media: Liquid, highly viscous, contaminated
  • Media temperature range: 0 °C – 60 °C
  • Ambient temperature range: 0 °C – 50 °C

Electrical Connection

  • Connector options: DIN EN 175301-803 plug, form A, 4-position x 90°
  • Connector wire diameter support: 6 – 8 mm
  • Alternative connection: M12×1 connector acc. DESINA/VDMA

Accessories

  • Electrical coil with M12×1 connector (DESINA/VDMA)
  • Electrical connection with DIN EN 175301-803 connector form B
