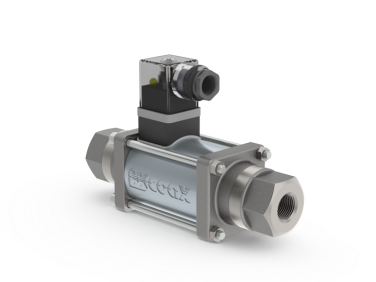

2/2 Way coaxial Direct Acting Valves MK 10

  • NG # 04057-HW-coax-001

  • MF # MK 10

The MK 10 2/2 Way Coaxial Direct Acting Valve is a compact, pressure-balanced solenoid valve designed for controlling gaseous, liquid, and contaminated media. It is available in normally closed and normally open versions with a threaded port range from G 1/4 to G 3/4. The valve delivers a Kᵥ flow coefficient of 2.5 m³/h and supports rapid switching cycles up to 200 per minute. Its robust construction with IP65 protection and multiple electrical connection options makes it suitable for a variety of industrial fluid control applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK 10 coaxial valve is part of a series of 2/2-way direct acting solenoid valves engineered for reliability and versatility in fluid handling systems. Pressure-balanced design ensures consistent performance across the specified pressure range. This model supports both normally closed and normally open functions, making it adaptable to different control strategies. It can withstand a wide range of media temperatures and ambient conditions, and its high duty cycle rating allows continuous operation without overheating. Multiple electrical connection standards and accessory options enhance installation flexibility and integration into automated systems.

Specification

  • Type: 2/2-way coaxial direct acting valve (MK 10)
  • Port connections: Threads G 1/4 to G 3/4
  • Function: Normally Closed (NC) / Normally Open (NO)
  • Pressure range: 0–16 / 0–40 bar
  • Flow coefficient (Kᵥ): 2.5 m³/h
  • Media compatibility: Gaseous, liquid, contaminated media
  • Flow direction: A → B as marked on valve body
  • Switching cycles: Up to 200/min
  • Switching time: 25 ms (opening); 25 ms (closing)
  • Media temperature range:
    • DC: –10 to +100 °C
    • AC: –10 to +100 °C
  • Ambient temperature range:
    • DC: –10 to +80 °C
    • AC: –10 to +80 °C
  • Weight: 1.5 kg
  • Nominal voltage:
    • 24 V DC (+5%/–10%)
    • 230 V AC (40-60 Hz, +5%/–10%)
  • Actuation:
    • DC direct-current magnet
    • AC direct-current magnet with integrated rectifier
  • Insulation rating: H (180 °C)
  • Protection class: IP65
  • Duty rating: ED 100%
  • Electrical connection options:
    • DIN EN 175301-803 plug, form A (4 positions × 90°)
    • M12×1 connector (DESINA / VDMA)
    • Terminal box versions
  • Optional accessories: Limit switches, mounting brackets, various connectors
