NG # 04070-HW-coax-015

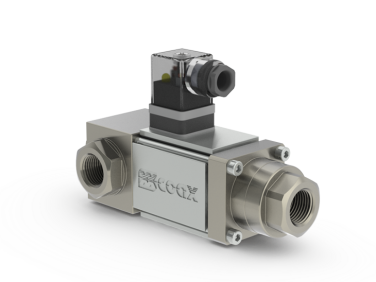

The MK 10 DR 40/100 bar valve is a coaxial, directly actuated 3/2‑way solenoid valve designed for control of gaseous, liquid, and contaminated media. It supports both normally closed and normally open operation, offers flexible port configurations (G 1/4 to G 3/4), and is suitable for applications requiring reliable switching up to 200 cycles per minute under a wide temperature range.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe MK 10 DR 40/100 bar is a high‑performance 3/2 way coaxial direct acting valve engineered for robust fluid control. Its pressure‑balanced design ensures reliable performance across a dual pressure range of up to 100 bar. With options for normally closed or normally open configurations and various electrical connection standards, it accommodates diverse system requirements. The valve’s construction supports gaseous, liquid, and contaminated media handling in demanding environments, while its compact size, IP65 protection, and durable insulation make it suitable for industrial automation and process control applications. Accessories such as alternative electrical connectors and mounting brackets further increase installation flexibility.
· Product Type: 3/2 Way coaxial direct acting valve, type MK 10 DR 40/100 bar.
· Port Thread Sizes: G 1/4 to G 3/4.
· Function Options: Normally Closed (NC) or Normally Open (NO).
· Pressure Range: 0–40 bar and 0–100 bar depending on configuration.
· Flow Coefficient (Kᵥ): Up to 2.2 m³/h (at 40 bar); 1.4 m³/h (at 100 bar).
· Media Compatibility: Gaseous, liquid, contaminated media.
· Switching Cycles: Up to 200 per minute.
· Switching Time: Opening 135 ms, Closing 20 ms.
· Media Temperature Range: DC & AC –10°C to +80°C.
· Ambient Temperature Range: DC & AC –10°C to +80°C.
· Weight: Approximately 2.5 kg.
· Nominal Voltages: 24 V DC (+5%/−10%) or 230 V AC 40–60 Hz (+5%/−10%).
· Actuation: DC direct‑current magnet or AC direct‑current magnet with integrated rectifier.
· Insulation Rating: H (180°C).
· Protection Class: IP65.
· Connection Options: DIN EN 175301‑803 plug or M12x1 DESINA/VDMA connector.
· Accessories Available: Various electrical connectors and mounting brackets.
