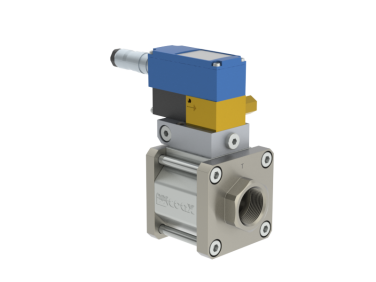

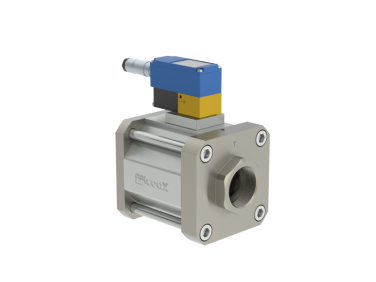

Flow Control Valves RMQ 32

  • NG # 04063-HW-coax-007

The RMQ 32 is a CO-AX electro-motorically controlled flow control valve designed for continuous and precise adjustment of fluid flow. It supports a wide range of media including gases, liquids, and contaminated or highly viscous fluids. The unit features stepless regulation, versatile threaded port sizes, and robust construction suitable for industrial environments, with an IP65 protection class and full duty cycle design.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RMQ 32 flow control valve from CO-AX (müller co-ax GmbH) is engineered for applications requiring accurate regulation of flow across varying media types. Its coaxial design offers stable and precise control, with a Kv value up to 20 m³/h and a dual pressure range capability up to 63 bar. The valve achieves smooth operation with an approximate response time of 3.5 seconds and maintains operation in challenging environmental conditions with an ambient temperature rating up to +70 °C and IP65 protection. Electrical connection is via a standardized M12 socket, and full duty cycle capability (ED 100 %) enables continuous use. Optional mounting accessories are available to support installation. The technical specifications may be tailored based on the specific media and application demands.

Specification

General

  • Type: RMQ 32 Flow Control Valve, electro-motorically controlled direct-acting design
  • Function: Stepless stroke regulation (continuous flow control)

Mechanical / Hydraulic

  • Port connections: Threads G 1 1/4 to G 1 1/2
  • Pressure range: 0 to 16 bar or 0 to 63 bar options
  • Kv (flow coefficient) value: Up to 20.0 m³/h
  • Operating time: Approximately 3.5 seconds

Media & Environment

  • Media suitability: Gaseous, liquid, highly viscous and contaminated media
  • Media temperature range: –20 °C to +80 °C
  • Ambient temperature: Maximum +70 °C

Electrical

  • Protection class: IP65
  • Duty rating: ED 100 %
  • Connection: M12 × 1 concentric socket (DIN 40040), 5-pole, wire diameter 6–8 mm

Additional Features

  • Optional accessories: Mounting brackets
  • Technical design may vary based on media and application requirements

Other COAX Products

2/2 Way coaxial Direct Acting Valves MK / FK 50
COAX Industrial Tools & Accessories 04066-HW-coax-011

Pressure Control Valves HPB 65
COAX Industrial Tools & Accessories 04078-HW-coax-023

Pressure Control Valves HPB-H 32
COAX Industrial Tools & Accessories 04076-HW-coax-021

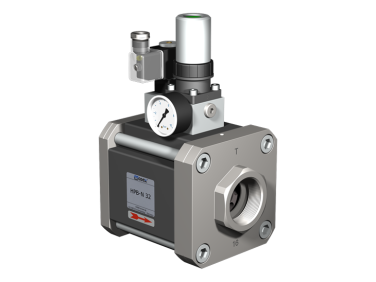

Pressure Control Valves HPB-N 32
COAX Industrial Tools & Accessories 04074-HW-coax-019

2/2 Way coaxial Direct Acting Valves MK / FK 40
COAX Industrial Tools & Accessories 04066-HW-coax-010

Flow Control Valves RMQ 20
COAX Industrial Tools & Accessories 04062-HW-coax-006

Pressure Control Valves HPB-N 15
COAX Industrial Tools & Accessories 04072-HW-coax-017

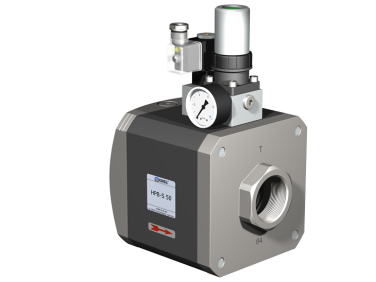

Pressure Control Valves HPB-S 50
COAX Industrial Tools & Accessories 04077-HW-coax-022

2/2 Way coaxial Direct Acting Valves MK / FK 15
COAX Industrial Tools & Accessories 04059-HW-coax-003

2/2 Way coaxial Direct Acting Valves MK 10 63/100 bar
COAX Industrial Tools & Accessories 04058-HW-coax-002

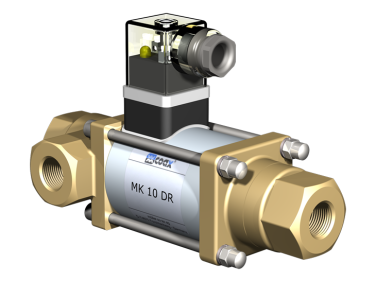

3/2 Way coaxial Direct Acting Valves MK 10 DR 40/100 bar
COAX Industrial Tools & Accessories 04070-HW-coax-015

2/2 Way coaxial Direct Acting Valves MK 10
COAX Industrial Tools & Accessories 04057-HW-coax-001

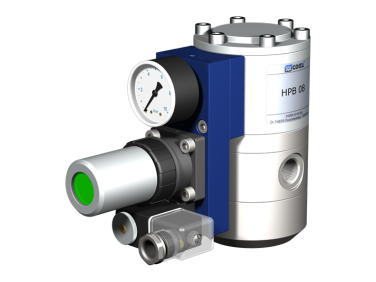

Pressure Control Valves HPB 08
COAX Industrial Tools & Accessories 04071-HW-coax-016

Pressure Control Valves SPB-N 32
COAX Industrial Tools & Accessories 04083-HW-coax-028

Pressure Control Valves SPB 08
COAX Industrial Tools & Accessories 04079-HW-coax-024

2/2 Way coaxial Direct Acting Valves MK / FK 20
COAX Industrial Tools & Accessories 04064-HW-coax-008

2/2 Way coaxial Direct Acting Valves MK / FK 32
COAX Industrial Tools & Accessories 04065-HW-coax-009

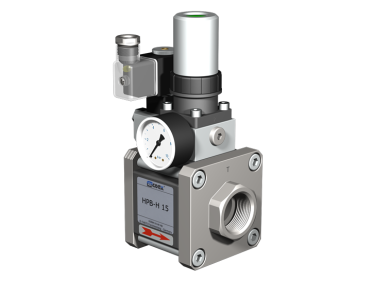

Pressure Control Valves HPB-H 15
