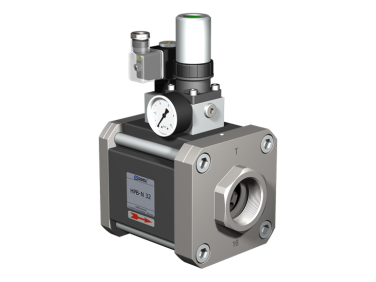

Pressure Control Valves HPB-N 32

  • NG # 04074-HW-coax-019

The HPB-N 32 Pressure Control Valve from muller co-ax is a robust bypass type valve designed for precise pressure regulation in liquid systems, including highly viscous and contaminated media. It features a large DN 32 size, wide regulation range, and reliable electrical connection options suitable for industrial applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB-N 32 is an externally controlled pressure limitation valve with a DN 32 port size, ideal for regulating and stabilizing system pressure in hydraulic and coolant circuits. It offers a stepless pressure regulation range, fast response, and durable protective features (IP65). The valve is compatible with standard industrial electrical connectors and supports continuous duty cycles.

Specification

  • Model: HPB-N 32 pressure control valve (pressure limitation/bypass)
  • Port connection: threads G 1 1/2 (metric)
  • Pressure regulation range: 1 to 16 bar
  • Flow capacity (approx): 24 m³/h (for DN 32 version)
  • Settling time: less than 900 ms
  • Media type suitability: liquid, highly viscous fluids, contaminated media
  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C
  • Insulation rating: H 180 °C
  • Protection class: IP65
  • Energized duty rating: ED 100%
  • Electrical connection options:
    • Plug according to DIN EN 175301-803, form A (4 positions at 90°), suitable for wire diameter 6-8 mm
    • M12x1 connector according to DESINA / VDMA standards
  • Valve design may vary depending on application requirements and media characteristics
  • Available accessories include electrical connection coils and alternative connector forms
