Pressure Control Valves SPB-H 32

  • NG # 04085-HW-coax-030

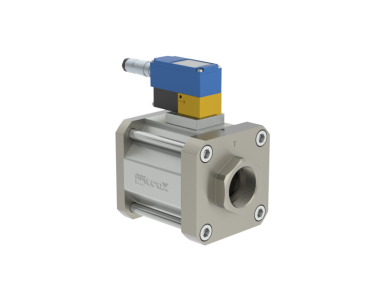

The SPB‑H 32 is an externally controlled pressure control valve designed for precise regulation of liquid, viscous, and contaminated media. It features robust construction with G 1 1/2 threaded ports and is suitable for industrial applications requiring consistent pressure performance and reliable duty ratings.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SPB‑H 32 Pressure Control Valve is part of the SPB series of electro‑pneumatically actuated pressure regulating valves by Müller Co‑Ax GmbH. This valve is engineered for use in systems where fluid pressure needs to be accurately regulated over a wide range. It supports high duty cycles and provides stable pressure control for various media types.

Specification

  • Model: SPB‑H 32 Pressure Control Valve
  • Port size and thread type: G 1 1/2
  • Pressure regulation range: 5 – 120 bar
  • Settling time: Less than 900 ms
  • Media compatibility: Liquid, highly viscous, contaminated media
  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C
  • Insulation rating: H (180 °C)
  • Protection class: IP65
  • Duty rating: ED 100 %
  • Electrical connection: Plug with 7 contacts for wire diameter 6 – 8 mm
  • Valve type: Externally controlled pressure control/regulating valve
  • Control and operation: Stepless pressure regulation with proportional control options available (e.g., 0‑10 V or 4‑20 mA setpoint signals)
  • Flow capacity (approx): ~14.4 m³/h at full range
  • Design considerations: Tailored variants may vary in design, sealing materials, and characteristics depending on application requirements
