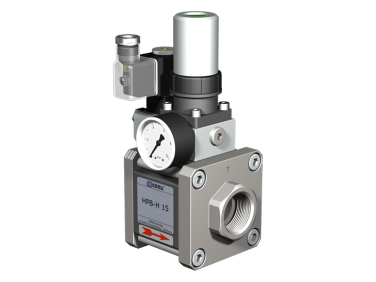

Pressure Control Valves HPB-H 15

  • NG # 04073-HW-coax-018

The HPB-H 15 is a pressure control valve designed for precise regulation of pressure in fluid systems. It is suitable for use with liquids that may be highly viscous or contaminated. The valve is electro-mechanically actuated, offers a broad regulation range, and has robust protection for industrial applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB-H 15 pressure control valve from CO-AX is engineered for reliable pressure regulation in hydraulic and fluid control systems that use challenging media, such as contaminated or viscous liquids. It provides a wide pressure regulation range up to 120 bar and operates with a fast response time under electrical actuation. The valve’s construction supports demanding industrial environments with high insulation and environmental protection ratings. Configurable electrical connection options make it compatible with various control systems.

Specification

·  Valve type: Pressure control / pressure limiting valve

·  Connection ports: Threaded G 1

·  Pressure regulation range: 5–120 bar

·  Settling time: Less than 900 ms

·  Media compatibility: Liquid, highly viscous fluids, contaminated media

·  Media temperature range: 0 °C to +60 °C

·  Ambient temperature range: 0 °C to +50 °C

·  Insulation rating: H 180 °C

·  Protection rating: IP65

·  Energized duty rating: ED 100%

·  Electrical connection: DIN EN 175301-803 plug (form A), 4 positions × 90°, wire diameter 6–8 mm

·  Alternative connection option: M12x1 connector per DESINA / VDMA standards
