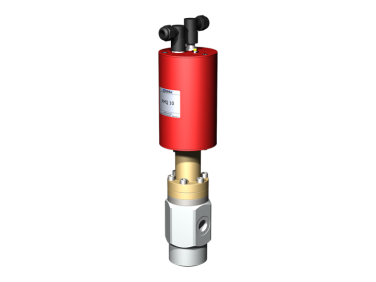

Flow Control Valves RMQ 10 PC

  • NG # 04060-HW-coax-004

The co-ax RMQ 10 PC is an electro-motor controlled flow control valve designed for precise stepless regulation of flow rate in gaseous, liquid, or highly viscous media. It offers a pressure regulation range up to 25 bar and accommodates a range of orifice sizes (DN 1 to 10) with corresponding flow capacities. Its robust design supports continuous duty operation and integrated electrical connection.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RMQ 10 PC is part of co-ax’s RMQ series of motor-driven flow control valves featuring stepless stroke regulation via control signals. The valve is suitable for applications requiring fine flow dosing and precise control in industrial fluid systems. It is engineered with a compact cartridge design for ease of maintenance and replacement without extensive disassembly. The valve supports operation in moderate temperature environments with IP65 protection and continuous energized duty capability.

Specification

General Characteristics

  • Model: RMQ 10 PC flow control valve
  • Function: Stepless flow regulation via electric motor control
  • Designed for gaseous, liquid, and highly viscous media

Mechanical / Hydraulic Data

  • Ports: Threads G 3/8
  • Pressure regulation range: 0 – 25 bar
  • Orifice / Nominal Diameter (DN): 1, 2, 3, 4, 5, 6, 8, 10
  • Flow performance (Kv in l/min): approx.
    • DN1: 0.8
    • DN2: 1.8
    • DN3: 3.5
    • DN4: 5.7
    • DN5: 9.0
    • DN6: 15
    • DN8: 26
    • DN10: 45

Environmental / Operating Conditions

  • Media temperature: 0 °C to +80 °C
  • Ambient temperature: Maximum +70 °C

Electrical / Control

  • Protection rating: IP65
  • Duty rating: ED 100% (continuous)
  • Electrical connection: M12x1 concentric socket DIN 40040, 5 poles, for 6-8 mm wire
  • Supported control signals: Typical 0-10 V / 4-20 mA (defined per application)

Response / Timing

  • Approximate operating (stroke) times vary by DN size (e.g., ~3.5 s to 16 s)

Design / Materials

  • Cartridge valve design for quick service and replacement
  • Body and seal materials vary based on application requirements (may include aluminium, stainless steel, PU, HNBR, FPM, etc.)
