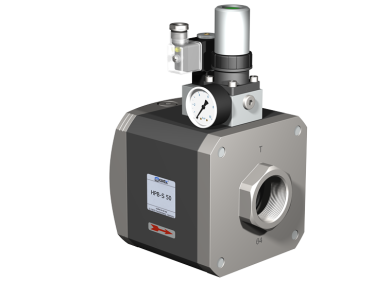

Pressure Control Valves HPB-S 50

  • NG # 04077-HW-coax-022

The HPB-S 50 is a bypass pressure control valve designed for precise pressure regulation in fluid systems. It features stepless adjustment of pressure within its control range and is suitable for use with media such as emulsions and oils. The valve is externally controlled and constructed with robust materials to ensure reliable performance in industrial applications.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HPB-S 50 pressure control valve is part of the CO-AX series of pressure limitation valves intended for managing and stabilising system pressure in coolant and fluid circuits. This valve offers accurate pressure control within a specified range, helping to protect pumps and pipelines from overpressure while ensuring consistent fluid delivery. It is actuated externally and designed for use in demanding industrial environments, including metal machining and other applications involving emulsions or oils. The construction includes durable body materials and seal options to suit typical operating conditions, and the valve’s modular design can accommodate various connection and accessory options.

Specification

Valve Type and Function

  • Externally controlled bypass pressure control valve (pressure limitation valve)
  • Stepless pressure regulation for precise control

Pressure and Flow

  • Pressure regulation range: 5 – 63 bar (corresponds to typical industrial usage)
  • Flow capacity (Kv value): approximately 48.0 m³/h for DN 50 size

Connections

  • Ports: thread connection G 1 1/2 (metric standard)
  • Optional SAE connections per DIN ISO 6162 available

Media and Temperature

  • Suitable for emulsions and oils as working fluids
  • Media temperature range: 0 °C to +60 °C
  • Ambient temperature range: 0 °C to +50 °C

Performance and Protection

  • Settling time: less than 900 ms
  • Insulation class rating: H 180 °C
  • Protection class: IP65
  • Duty cycle: ED 100 % suitable for continuous operation

Connections and Interfaces

  • Electrical connection options: plug to DIN EN 175301-803 form A (4 positions) or M12x1 connector according to DESINA/VDMA standards

Materials and Accessories

  • Valve body materials selected for contact with media to ensure durability
  • Seal materials such as FPM and PTFE available depending on configuration
  • Optional accessories include different connector choices and electrical interface variants
