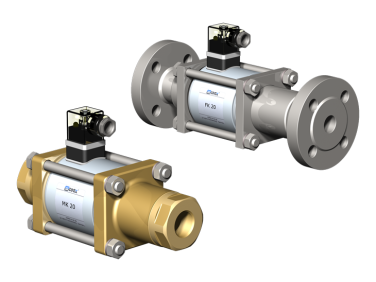

2/2 Way coaxial Direct Acting Valves MK / FK 20

  • NG # 04064-HW-coax-008

The MK / FK 20 is a 2/2-way coaxial direct acting solenoid valve designed for control of gaseous, liquid and contaminated media. It is available in normally closed (NC) and normally open (NO) versions with threaded or flanged ports, suitable for a wide pressure range up to 100 bar. The valve offers reliable switching, high duty rating, and robust electrical and mechanical connection options.

Manufactured By :
COAX
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MK / FK 20 valve is part of the 2/2-way coaxial direct acting valve series. These valves are electrically actuated and hermetically sealed for safe use with various media including liquids, gases, highly viscous or contaminated substances. The design supports both DC and AC operation and is optimized for durability and flexible industrial integration.

Specification

General

  • Valve Type: 2/2-way coaxial direct acting solenoid valve
  • Function Options: Normally closed (NC) / Normally open (NO)
  • Flow Direction: A → B as marked

Mechanical

  • Port Sizes (Threaded): G 3/4 to G 1 1/4
  • Flange Options: PN 16 / 40 / 100
  • Pressure Range: 0 – 16 / 0 – 40 / 0 – 63 / 0 – 100 bar
  • Flow Coefficient (Kₚ value): 8.4 m³/h
  • Switching Cycles: 150 cycles per minute
  • Switching Time: 110 ms (opening), 110 ms (closing)
  • Media Temperature Range: DC -20°C to +100°C, AC -20°C to +100°C
  • Ambient Temperature Range: DC -20°C to +80°C, AC -20°C to +80°C
  • Weight: MK 5.5 kg, FK 7.5 kg

Electrical

  • Nominal Voltage: 24 V DC (+5% / -10%), 230 V AC (40–60 Hz, +5% / -10%)
  • Actuation: DC direct-current magnet; AC magnet with integrated rectifier
  • Insulation Rating: H (180°C)
  • Protection Rating: IP65
  • Energized Duty Rating: ED 100%
  • Connection Types:
    • Plug according to DIN EN 175301-803, Form A, 4 positions x 90° (wire diameter 6–8 mm)
    • M12x1 connector according to DESINA / VDMA

Media Compatibility

  • Suitable for gaseous, liquid, highly viscous, gelatinous and contaminated media
